Technical Specifications

Output

Max Configurable Power (Watts)

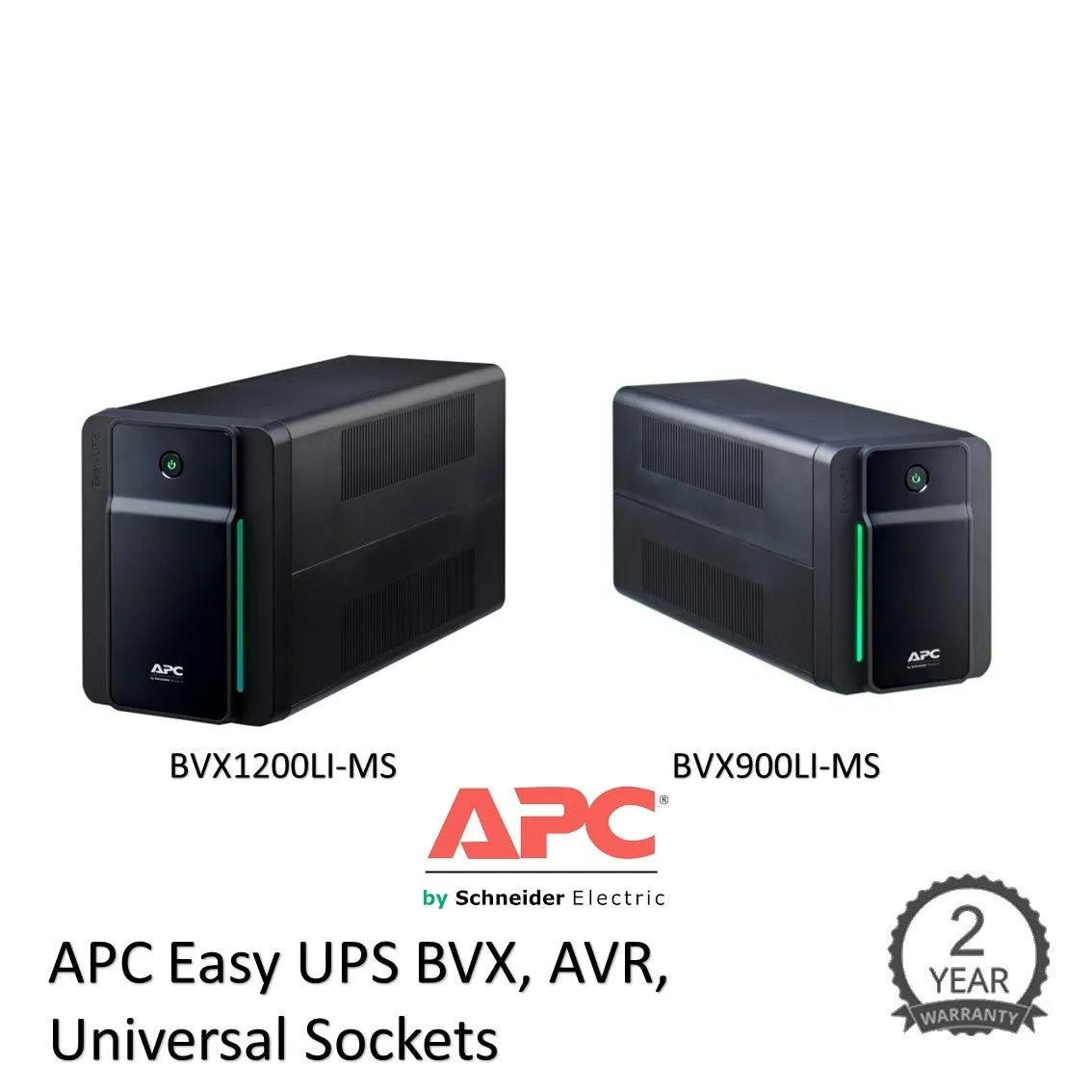

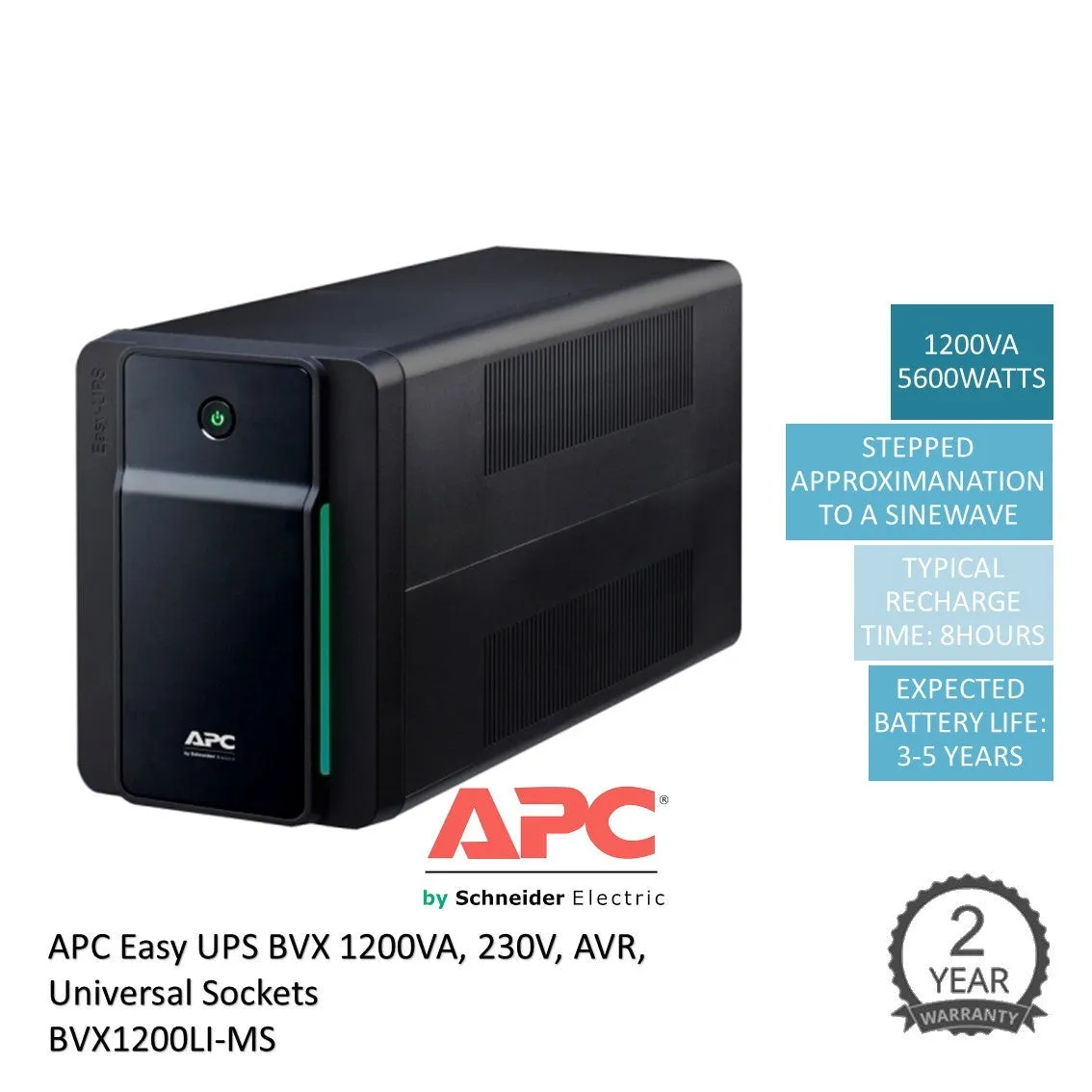

BVX1200LI-MS: 650 Watts / 1.2kVA | BVX900LI-MS: 480 Watts /900VA

Output Frequency (sync to mains): 50/60 Hz /- 1 Hz Sync to mains

Topology: Line interactive

Waveform type: Stepped approximation to a sinewave

Transfer Time: 6 ms typical - 10 ms maximum

Input

Input frequency: 50/60 Hz /- 5 Hz Auto-sensing

Input voltage range for main operations: 140 - 300 (230 V)ACV

Number of Power Cords: 1

Input Power Factor at Full Load

BVX1200LI-MS: 0.51 | BVX900LI-MS: 0.53

Batteries & Runtime

Battery type: Lead-acid battery

Typical recharge time: 8hour(s)

Nominal Battery Voltage: 12 V

Expected Battery Life (years): 2 - 5

Battery Volt-Amp-Hour Capacity: 108

Communications & Management

Control panel: LED Status display with on line - on battery

Audible Alarm: Alarm when on battery - distinctive low battery alarm

Surge Protection and Filtering

Surge energy rating: 273Joules
