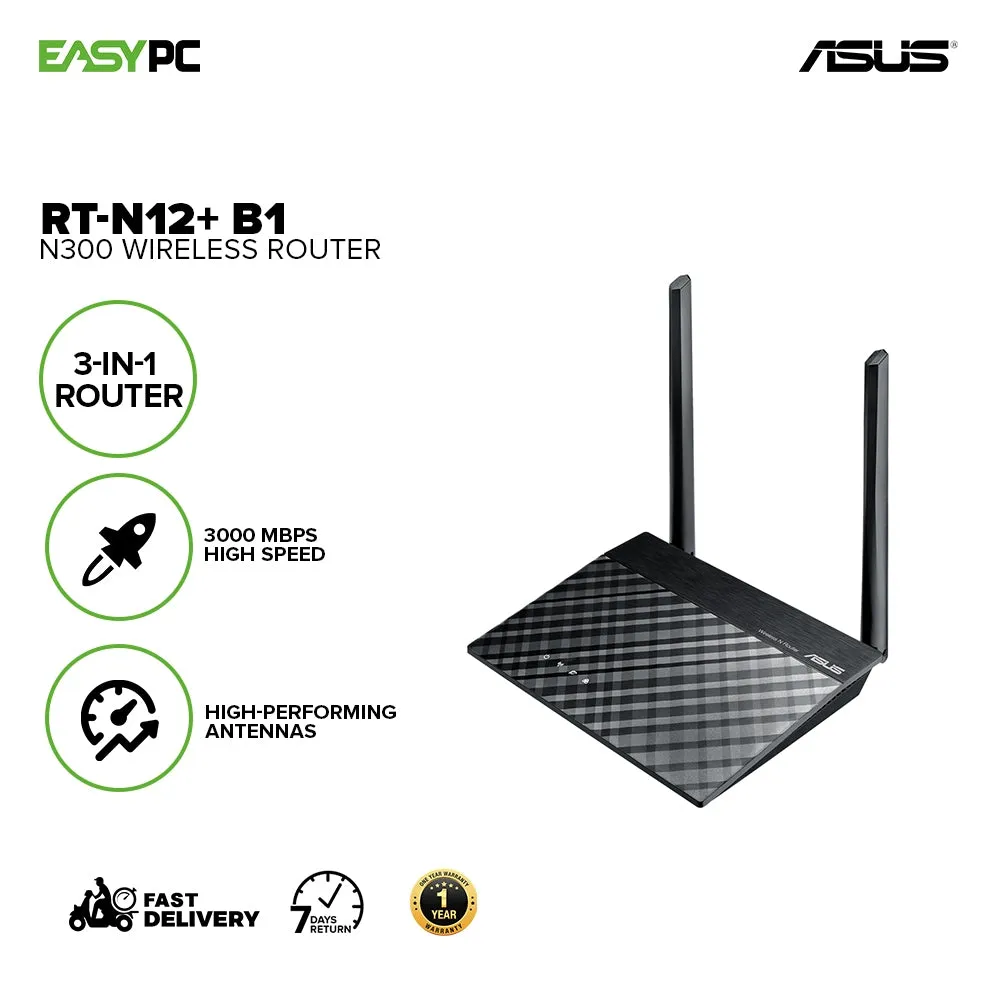

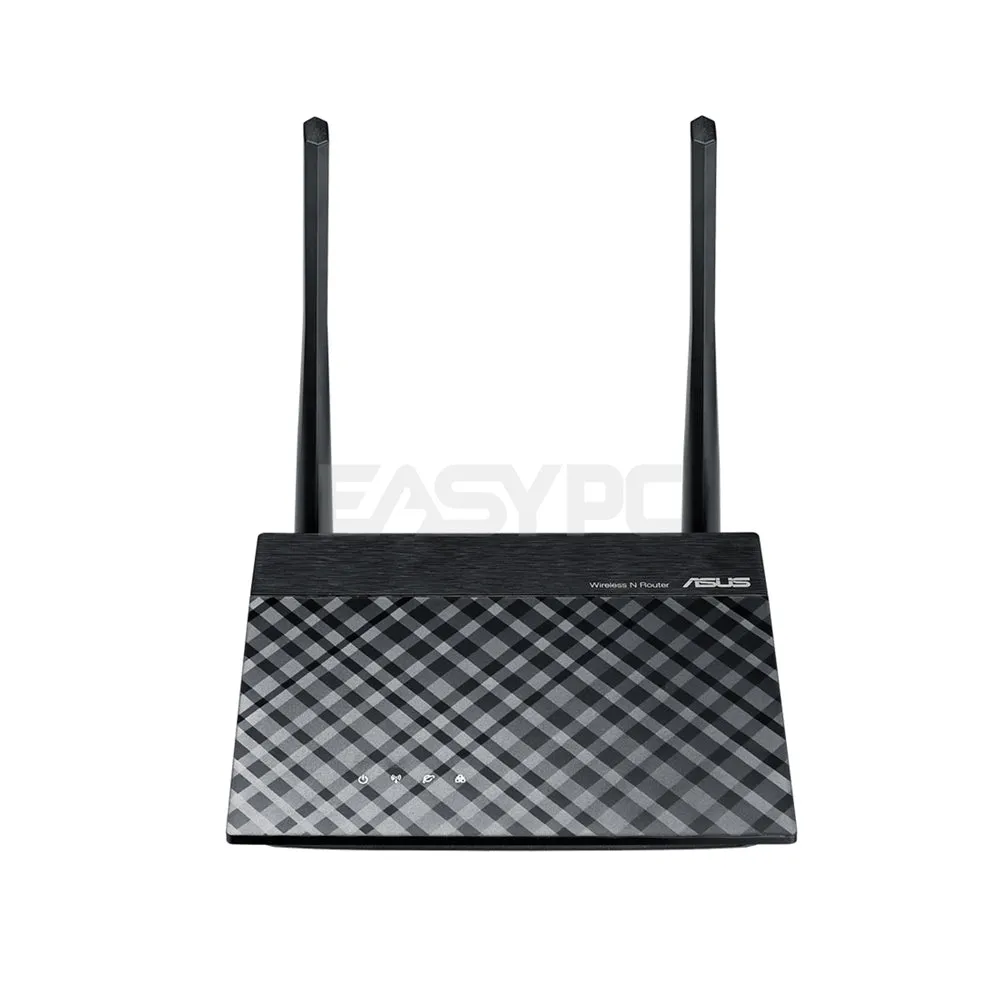

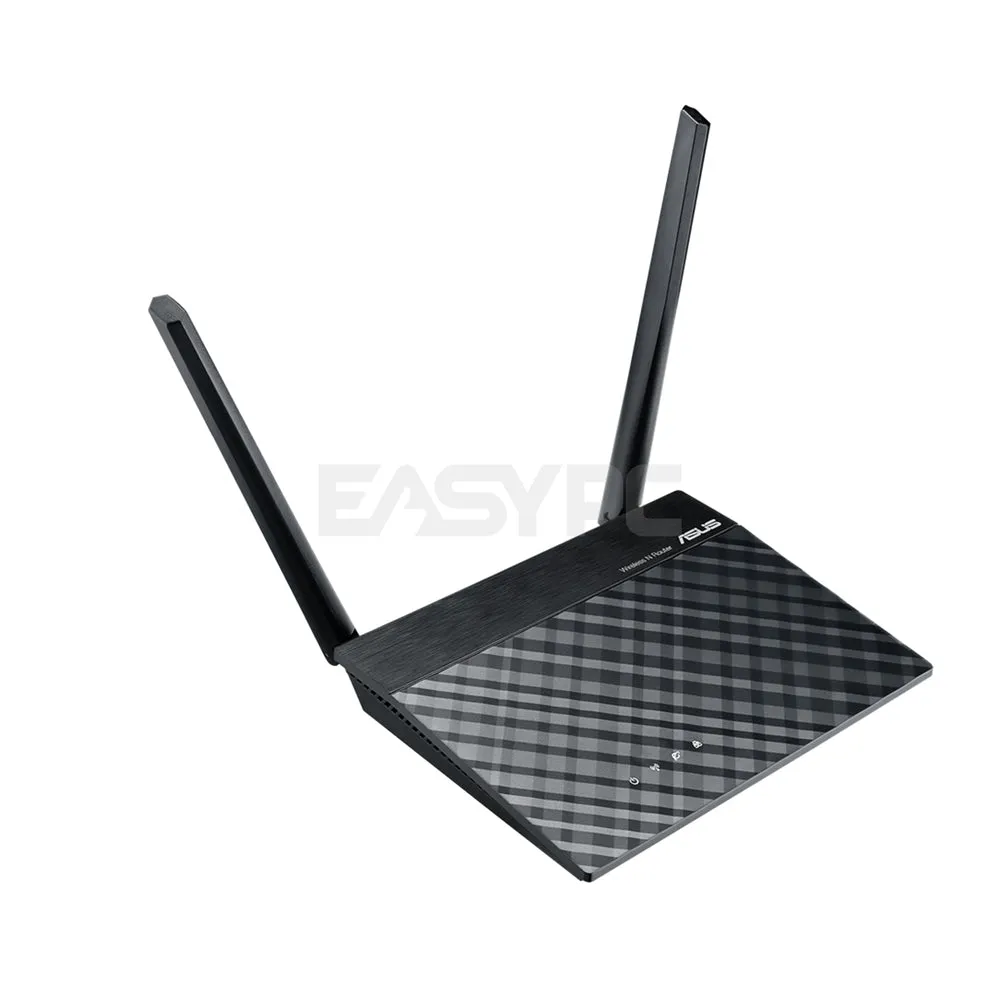

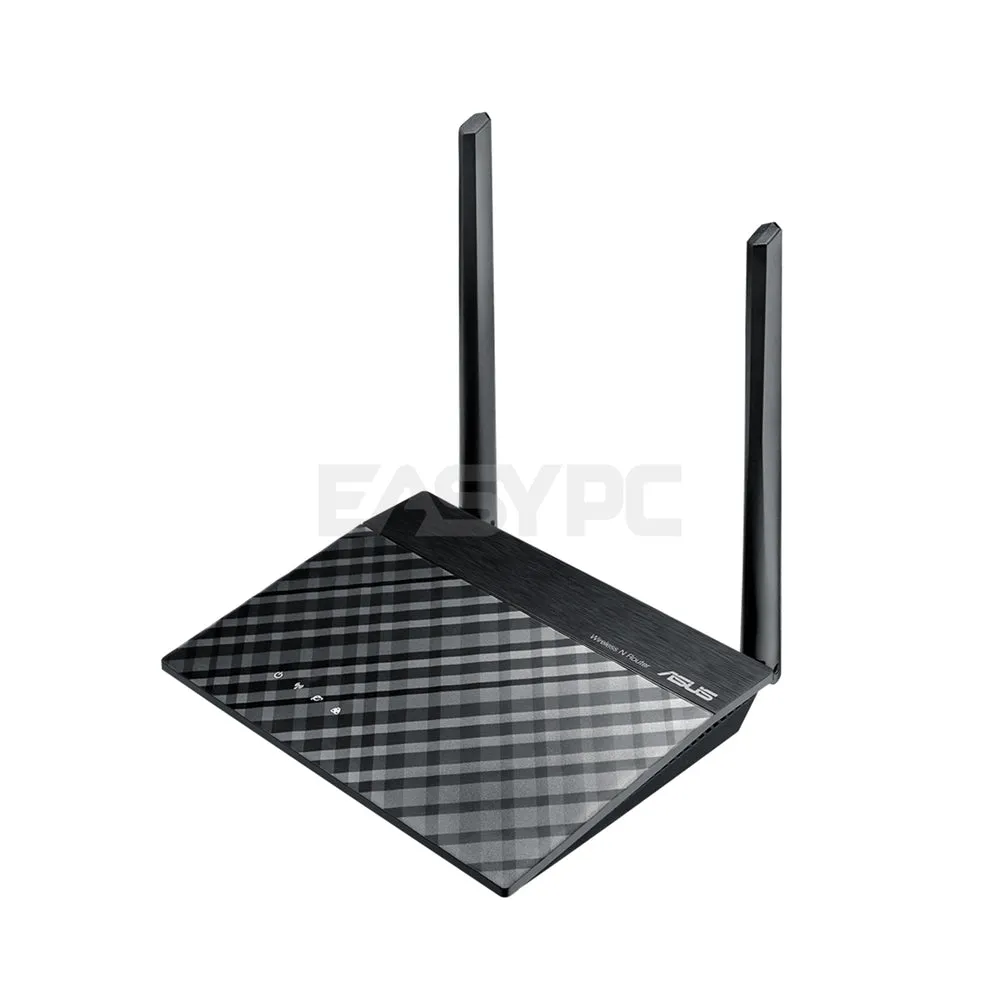

ASUS RT-N12 B1 N300,3-in-1 Router, 3000 MBPS high speed, Repeater Access Point wireless modes 2 external high-performance antennas Wireless Router

Product Specifications

• Brand: Asus
• Model Name: RT-N12 B1
• Network Standard:
• IEEE 802.11b
• IEEE 802.11g
• WiFi 4 (802.11n)
• IPv4
• IPv6
• Data Rate:
• 11b : up to 11 Mbps
• 11g : up to 54 Mbps
• WiFi 4 (802.11n) : up to 300 Mbps
• Antenna: Fixed antenna x 2
• Transmit/Receive: MIMO technology, 2.4GHz 2x2
• Memory: 8 MB Flash, 32 MB RAM
• Operating Frequency: 2.4G Hz

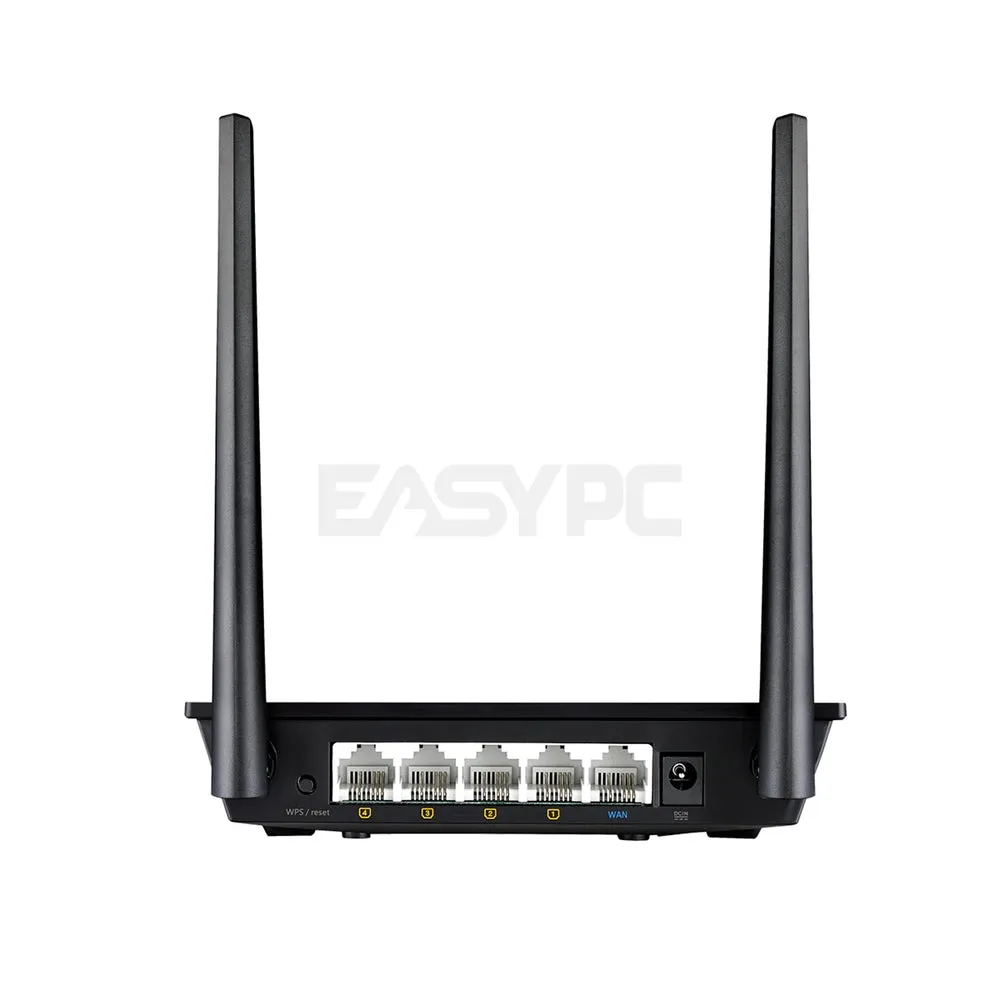

• Ports: RJ45 for 10/100 BaseT for WAN x 1, RJ45 for 10/100 BaseT for LAN x 4
• Button: WPS Button, Reset Button
• LED Indicator:
• Power x 1
• Wi-Fi x 1
• WAN x 1
• LAN x 1
• Power Supply:
• AC Input: 110V~240V(50~60Hz)
• DC Output: 12 V with max. 0.5 A current
• Product Weight (g): 168.9 g
• AiMesh:
• AiMesh: No
• Primary AiMesh router: No
• AiMesh node: No
• Router APP: ASUS Router APP: Yes
• Game
• Game Boost/acceleration: No
• WTFast: No
• Alexa: Support Alexa skill: No
• IFTTT
• Support IFTTT: No
• AiProtection
• AiProtection: No
• Router Security Assessment: No
• Malicious site blocking: No
• Two-Way IPS: No
• Infected Device Prevention and Blocking; No
• Parental Control
• Parental Control: Yes
• Parental Control Customized Internet schedule: Yes
• Traffic Control
• Adaptive QoS : No
• Bandwidth Monitor : No
• Bandwidth limiter : Yes
• Maximum Bandwidth limiter rule : 32
• Traditional QoS : Yes
• Maximum Traditional QoS rule : 32
• Traffic Monitor : Yes
• Real-time traffic monitor : Yes
• Wired Traffic Monitor : Yes
• Wireless Traffic Monitor : Yes
• Traffic Analyzer : No
• Traffic analysis period : Daily, Weekly, Monthly
• Website history : No
• Wireless
• IPv6 : Yes
• MU-MIMO : No
• Wi-Fi Encryption : Open system, WPA/WPA2-Personal, WPA/WPA2-Enterprise
• UTF-8 SSID : Yes
• Guest Network : Yes
• Maximum Guest Network rule : 2.4GHz x3, 5GHz x3
• Guest Network Encryption : Open system, WPA/WPA2-Personal
• WPS : Yes
• Wi-Fi MAC address filter : Yes
• Maximum MAC filters : 64
• Wireless scheduler : Yes
• Airtime fairness : No
• RADIUS Server : Yes
• Universal beamforming : No
• Explicit beamforming : No
• IGMP snooping : Yes
• WAN
• Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
• Dual WAN : No
• WAN Aggregation : No
• 3G/4G LTE dongle : No
• Android tethering : No
• Port forwarding : Yes
• Maximum port forwarding rule : 64
• Port triggering : Yes
• Maximum port triggering rule : 32
• DMZ : Yes
• DDNS : Yes
• NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
• LAN
• DHCP Server : Yes
• IPTV : Yes
• LAN Link Aggregation : No
• Manually assign IP address : Yes
• VPN
• VPN Client L2PT : Yes
• VPN Client OVPN : No
• VPN Client PPTP : Yes
• VPN Server IPSec : No
• VPN Server OVPN : No
• VPN Server PPTP : Yes
• VPN Fusion : No
• USB application
• File System : No
• 3G/4G LTE dongle : No
• HDD hibernation : No
• Safely Remove disk : No
• AiCloud : No
• Download master : No
• AiDisk : No
• Media Server : No
• Time Machine : No
• Samba Server : No
• FTP Server : No
• Shared Folder privileges : No
• Administration
• Operating mode : Accesspoint, Router
• Operating system : ASUSWRT
• Free OS upgrade : Yes
• Firewall : Yes
• Maximum Firewall keyword filter : 64
• Maximum Firewall network service filter : 32
• Maximum Firewall URL filter : 64
• Wake on LAN (WOL) : Yes
• SSH : Yes
• Configuration backup and restore : Yes
• Diagnosis tools : Yes
• Feedback system : Yes
• System log : Yes
• Overview:
• N300 Wi-Fi Router with three operating modes and two high-performance antennas
• Features:
• Multiple 3-in-1 Router / Repeater / Access Point wireless modes
• Two external high-performance antennas for more powerful and wider coverage
• 300 Mbps high speed
