Product Details
＋

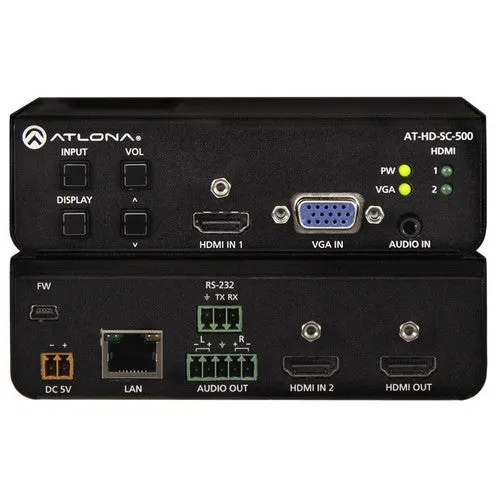

The Atlona AT-HD-SC-500 is a scaler with built-in 3×1 switcher for HDMI and VGA signals. It features two HDMI inputs and a VGA input with 3.5mm audio connector. The scaler is designed to take video signals from switchers, PCs or laptops and scale them to an HDMI output at a wide-range of HDTV and PC resolutions, up to 1080p/60Hz and WUXGA (1920×1200). For ease of operation, the AT-HD-SC-500 features auto-switching for active input selection when sources are connected or if there is a change in source power status. Input selection can also be controlled from the front panel, RS-232, or TCP/IP commands. Set-up is performed using Atlona's webGUI or OSD. Set-up options include variable preferred input resolutions, output resolution, plus control of brightness, contrast, saturation, hue and sharpness. The AT-HD-SC-500 is ideal for applications where multiple signals with different resolutions must be optimized for a display.
The AT-HD-SC-500 combines a scaler with multiple inputs and auto-switching capabilities for use in a small system with HDMI and VGA sources, and audio features including analog de-embedding, volume control, and equalization.
Scaler with HDMI output and input resolution control -
The AT-HD-SC-500 combines a scaler with multiple inputs and auto-switching capabilities for use in a small system with HDMI and VGA sources, and audio features including analog de-embedding, volume control, and equalization.
Scaler with HDMI output and input resolution control -
- Scales output video signals up to 1080p/60Hz and 1920×1200; Choose preferred scaler input resolution from 800×600 to 1920×1200
- Assures compatibility of VGA and HDMI sources with the display
- Features two HDMI inputs plus a VGA input with 3.5mm audio connector
- Allows advanced HDMI display devices to be used with legacy VGA sources
- Flexible control options for compatibility with 3rd- party control systems
- Reduces integration time and costs
- Selects active input when sources are connected or if there is a change in source power status
- Eliminates need for complex control system in small AV systems
- Overrides auto-switching when two active sources are present
- Simple manual control allows presenter to maintain control of the image on screen
- Adjusts level of both embedded and de-embedded audio; provides 'Mute' mode
- Simplifies audio level settings for best sound
PRODUCT HIGHLIGHTS
- Use this audio video switchbox and eliminate the need to manually switch cables between sources
- Trouble free connection with computer
- Connect single display to 3 sources
- Enjoy watching any class of content on 1920 x 1200 resolution
- TCP/IP and RS-232 control
- Audio de-embedding
- On-screen display with front panel menu controls
- Eliminates need for complex control system in AV systems. Enables display and volume control. CEC enables control of low-cost consumer displays.
- Digital inputs to support up to two HDMI sources or DisplayPort and DVI sources with appropriate adapters
- Ideal for a variety of digital sources including laptops, PCs, and cameras
- Accepts RGBHV signals using common adaptors and break out cables
- Provides input options for legacy analog sources
- Flexible control options for compatibility with third-party control systems. RS-232 controlled from HDBaseT™ connection
- Reduces integration time and costs
- Overrides automatic input selection when two active sources are present
- Simple manual control allows presenter to maintain control of the image on screen
- Remotely controls display power state; provides alternate ‘Display Mute’ mode
- Eliminates need for manual operation of display or use of IR remote control
- Adjusts level of both embedded and de-embedded audio; provides ‘Mute’ mode
- Simplifies audio level settings for best sound
| GENERAL INFORMATION | |
| Manufacturer | Atlona Technologies |
| Manufacturer Part Number | AT-HD-SC-500 |
| Manufacturer Website Address | |
| Brand Name | Atlona |
| Product Model | HD-SC-500 |
| Product Name | Three-Input HD Video Scaler for HDMI and VGA Signals |
| Product Type | Audio/Video Switchbox |
| TECHNICAL INFORMATION | |
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 3 |
| Device Supported | Notebook |
| Display | |
| TV | |
| DVR | |
| Camera | |
| A/V Receiver | |
| Projector | |
| Computer | |
| Number of Displays Supported | 1 |
| VIDEO | |
| Graphics Modes | WUXGA |
| Maximum Video Resolution | 1920 x 1200 |
| INTERFACES/PORTS | |
| HDMI In | Yes |
| HDMI Out | Yes |
| VGA In | Yes |
| Connectivity (RJ-45) | Yes |
| Number of Connectivity (RJ-45) Ports | 1 |
| Number of USB Ports | 1 |
| Number of HDMI Inputs | 2 |
| Number of HDMI Outputs | 1 |
| Number of VGA Inputs | 1 |
| MEDIA & PERFORMANCE | |
| Maximum Operating Distance | 30 ft |
| PHYSICAL CHARACTERISTICS | |
| Form Factor | Surface-mountable |
| Under Table | |
| Wall Mountable | |
| MISCELLANEOUS | |
| Package Contents | Three-Input HD Video Scaler for HDMI and VGA Signals User Guide Power Supply Detachable Power Cable Captive Screw Connectors Mounting Brackets |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| WARRANTY | |
| Limited Warranty | 10 Year |
| ITEM DETAILS | |
| Model Number | AT-HD-SC-500 |
| Brand | Atlona |
| Category | Signal Distribution/Scaler & Scan Converters |
| Mfr ID | ATLONA |
| UPS Shippable | Y |
| Shipping Weight | 1.8 |
| UPC Code | 846352004668 |
| Country of Origin | US-United States |
