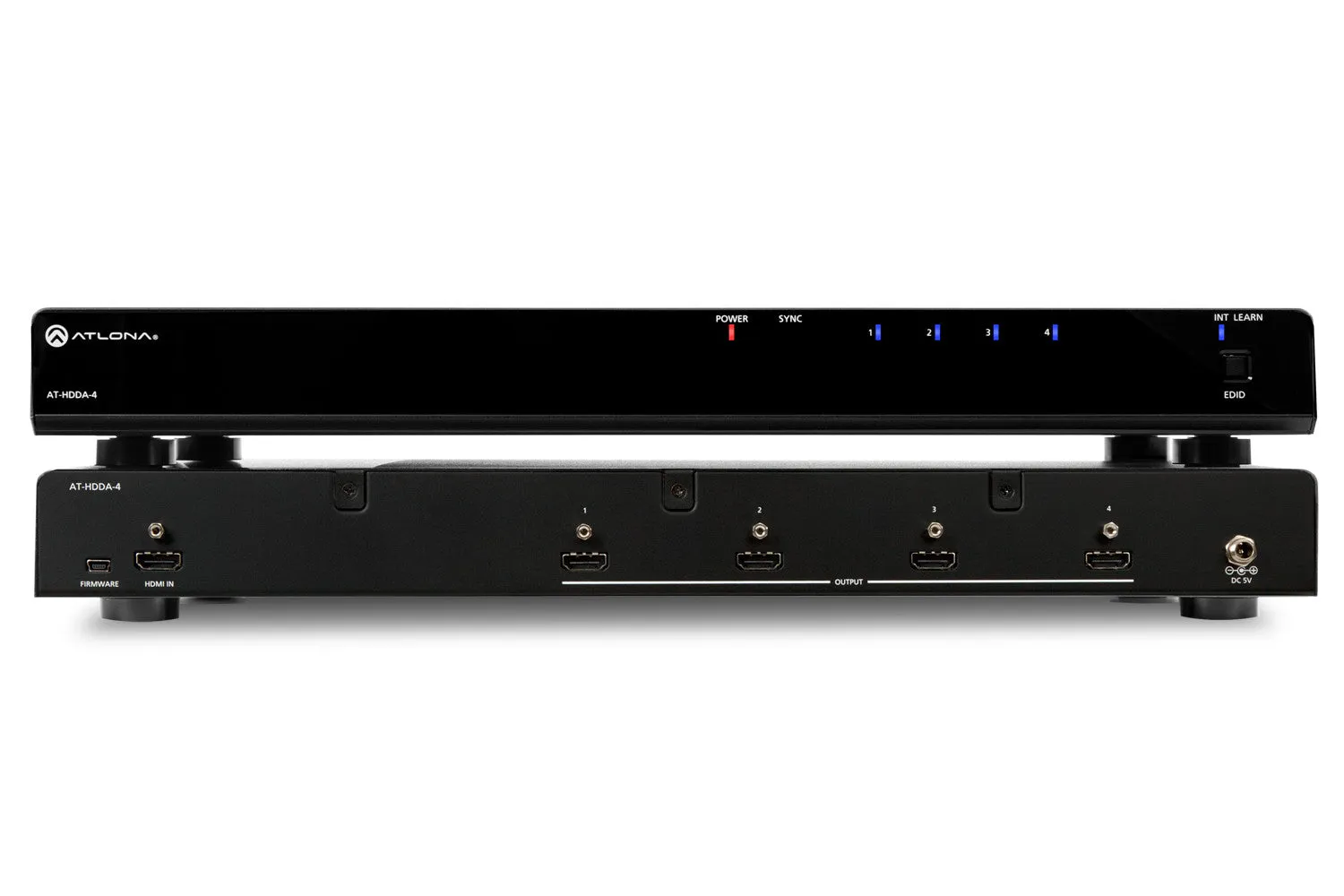

Finally, a distribution amplifier that supports Ultra HD (4Kx2K)! 4 zones with advanced EDID management, ideal for displays using cutting-edge Ultra HD resolution.
Ultra HD for Vivid Details
HDDA-4 passes 4Kx2K, the highest currently available resolution, plus Dolby True HD, DTS HD Master Audio, and 3D up to 48-bit deep color.
Advanced EDID Management
Learns reference EDID from first connected output display and mirrors to all outputs ensuring a reliable and uninterrupted A/V signal.
Additional Features
- Supports cascading up to 8x (@1080p)
- Link status LED for source and outputs
- Supports pass through of all 3D formats
- Pass through support of all Lossy and Lossless audio (up to Dolby TrueHD or DTS-HD Master Audio).
- Locking HDMI port
- Field serviceable firmware port
- Includes dual purpose wall/rack mount ears
Compatibility
Use with Atlona HDBaseT extender collection, HDBaseT distribution amplifier collection, or HDMI-to-HDMI matrix switcher collection
- AT-HDTX - Atlona HDBaseT TX HDMI Box
- AT-HDRX - Atlona HDBaseT RX HDMI Box
- AT-HDWP - Atlona HDBaseT RX HDMI 2-Gang US Wall Plate
- AT-HDWP-UK - Atlona HDBaseT RX HDMI 1-Gang UK Wall Plate
- AT-HDCAT-4 - Atlona 2 x 4 HDMI to HDBaseT Distribution Amplifier
- AT-HDCAT-8 - Atlona 2 x 8 HDMI to HDBaseT Distribution Amplifier
- AT-HDCAT-8ED - Atlona 2 x 8 HDMI to HDBaseT Extended Distance Distribution Amplifier
- AT-H2H-44M - Atlona 4 x 4 HDMI Matrix Switcher
- AT-H2H-88M - Atlona 8 x 8 HDMI Matrix Switcher
©2013 Atlona Inc. All rights reserved. "Atlona" the Atlona logo are registered trademarks of Atlona Inc. All other brand names, trademarks, servicemarks, registered trademarks, and registered servicemarks are the property of their respective owners.
| General Information | |
| Manufacturer | Atlona |
| Manufacturer Part Number | AT-HDDA-4 |
| Resolution | |
| Video | 480i@60Hz, [email protected]/60Hz, 576i@50Hz, 576p@50Hz, 720p@50/59.94/60Hz, 1080i@50/59.94/60Hz, [email protected]/24/25/29.97/30/50/59.94/60Hz, 3840×2160@24/25/30/50*/60Hz*, 4096×2160@24/25/30/50*/60Hz* * 4096×2160@50/60Hz & 3840×2160@50/60Hz supported @ Chroma subsampling 4:2:0 8-bit only |
| VESA | 640×480@60Hz, 800×600@60/75Hz, 1024×768@60/75Hz, 1280×768@60/75Hz, 1280×800@60Hz, 1280×1024@60/75Hz, 1366×768@60Hz, 1440×900@60/75Hz, 1400×1050@60Hz, 1600×1200@60Hz, 1600×900@60Hz, 1680×1050@60Hz, 1920×1200@60Hz |
| Colorspace | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Color depth | 8-bit, 10-bit, 12-bit |
| Audio | |
| Formats | PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital , Dolby TrueHD, DTS-HD Master Audio |
| Sample Rate | 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz |
| Distance | |
| HDMI IN | up to 15m/50ft (@1080p 8-bit) |
| HDMI OUT | up to 15m/50ft (@1080p 12-bit) |
| 4K | up to 5m/15ft |
| Signal | |
| Bandwidth | 10.2 Gbps |
| CEC | No |
| HDCP | Compliant |
| Temperature | |
| Operating | 0°C to 40°C/32°F to 104°F |
| Storage | -20°C to 60°C/-4°F to 140°F |
| Humidity | 20 to 90% non-condensing |
| Power | |
| Consumption | 5W |
| Supply | Input: AC100~240V 50/60Hz Output: DC 5V/2.6A |
| Dimension | |
| H x W x D | 44 x 433.8 x 255 (mm)/1.73 x 17.08 x 10.04 (inch) |
| w/feet | 55.15 x 433.8 x 255 (mm)/2.17 x 17.08 x 10.04 (inch) |
| Rack Unit | 1 |
| Weight | |
| Device | 2.61kg/5.75lbs |
| Shipping | 4.20kg/9.25lbs |
| Certification | |
| Power Supply | CE, FCC, cULus |
| Ports | |
| HDMI IN | 3D, 4K, 1920×1200, Dolby TrueHD, DTS-HD Master Audio |
| HDMI OUT | 3D, 4K, 1920×1200, Dolby TrueHD, DTS-HD Master Audio |
| Mini USB | Firmware updating |
| Package | |
| Contents |
|
