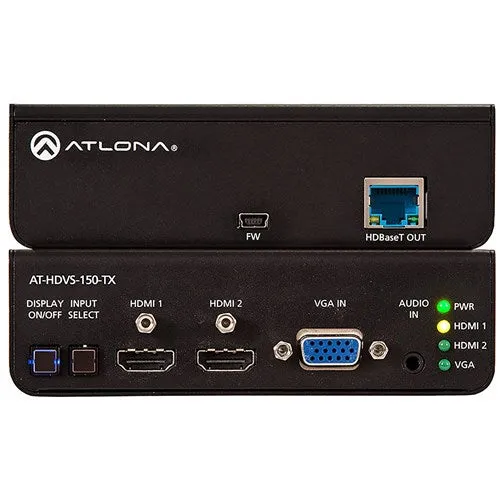

The AT-HDVS-150-TX is a 3×1 Switcher for HDMI and VGA Inputs with HDBaseT Output. It features two HDMI inputs plus a VGA input with 3.5mm audio connector. The AT-HDVS-150-TX combines the benefits of a switcher with built-in auto-switching and the advantages of long-distance HDBaseT signal extension over a single cable. HDMI signals up to 4K/UHD @ 60Hz with embedded audio, VGA input signals up to 1920×1200 video, and control signals can be extended up to 230 feet (70 meters). The switcher enables auto display on/off, auto-switching, along with other features. The switcher receives power from the AT-HDVS-150-RX receiver using Power over Ethernet. The AT-HDVS-150-TX is ideal for long distance transmission and display control in corporate or educational settings using analog and digital sources.
Automatic Display Control
The AT-HDVS-150-TX, when used in combination with the AT-HDVS-150-RX receiver, allows automatic display control using RS-232 signals. When integrated with a display, the AT-HDVS-150-RX forces the display to power on automatically when a laptop is connected to the AT-HDVS-150-TX. At the end of the presentation, when the presenter disconnects the laptop from the transmitter, the AT-HDVS-150-RX forces the display to power off. Ease of presenter interaction with the system and the savings incurred by auto-display shutdown provide a significant return on investment.
- RS-232 - Many displays including projectors, commercial flat panel displays, and some consumer displays can be controlled using the RS-232 signal directly from the switcher. The switcher is able to send commands using RS-232 for automatic display control to compatible displays.
Reliable Auto-Switching
Automatic input selection on the AT-HDVS-150-TX uses the 5 volt, hot plug signal in order to detect and automatically switch to the proper input.
The AT-HDVS-150-TX is ideal for:
- Education environments - The switcher is placed on a lectern for use with remote video inputs such as a laptop and document camera. Auto-switching technology selects the active source input and routes the signal via HDBaseT to the switcher downstream.
- Corporate environments - The switcher is placed at a boardroom conference table to allow presenters to easily connect their laptops to the system. When integrated with a control system, commands can be sent to activate a display from the front panel of the switcher.
PRODUCT HIGHLIGHTS
- Switch between sources by using this audio video switchbox without degradation of video quality and eliminate the need to manually switch cables between sources
- Quickly and easily connect with the display
- Switch between 3 sources to a single display
- 4096 x 2160 resolution for high-quality video delivery
- Uses easy-to-integrate category cable for low-cost, reliable system installation
- Automatically changes projector power state based on active or standby mode of the switcher (in conjunction with the AT-HDVS-150-RX). Control signals are transmitted via RS-232.
- Eliminates the need for a complex control system in small AV systems
- Selects active input when sources are connected or if there is a change in source power status
- Eliminates need for complex control system in AV systems
- Overrides auto-switching when two active sources are present
- Remotely controls display power state; provides alternate ‘Display Mute’ mode
- Eliminates need for manual operation of display or use of IR remote control
| GENERAL INFORMATION | |
| Manufacturer | Atlona Technologies |
| Manufacturer Part Number | AT-HDVS-150-TX |
| Manufacturer Website Address | |
| Brand Name | Atlona |
| Product Model | AT-HDVS-150-TX |
| Product Name | Three-Input Switcher for HDMI and VGA Sources with HDBaseT Output |
| Product Type | Audio/Video Switchbox |
| ADDITIONAL PRODUCT SPECIFICATIONS | |
| Full Product Specifications | Click to view |
| TECHNICAL INFORMATION | |
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 3 |
| Device Supported | Display |
| Projector | |
| Computer | |
| Number of Displays Supported | 1 |
| VIDEO | |
| Graphics Modes | 4K |
| Maximum Video Resolution | 4096 x 2160 |
| INTERFACES/PORTS | |
| HDMI In | Yes |
| VGA In | Yes |
| Connectivity (RJ-45) | Yes |
| Number of Connectivity (RJ-45) Ports | 1 |
| Number of USB Ports | 1 |
| Number of HDMI Inputs | 2 |
| Number of VGA Inputs | 1 |
| MEDIA & PERFORMANCE | |
| Media Type Supported | Twisted Pair |
| Maximum Operating Distance | 229.66 ft |
| MISCELLANEOUS | |
| Country of Origin | United Kingdom |
| WARRANTY | |
| Limited Warranty | 10 Year |
| ITEM DETAILS | |
| Model Number | AT-HDVS-150-TX |
| Brand | Atlona |
| Category | Signal Distribution/UTP Extension |
| Mfr ID | ATLONA |
| UPS Shippable | Y |
| Shipping Weight | 1 |
| UPC Code | 846352004774 |
| Country of Origin | US-United States |
