Name: ATLONA AT-UHD-CLSO-612ED Multi-Format Switcher with Mirrored HDMI & HDBaseT Outputs
SKU: 219576

Product Details ＋

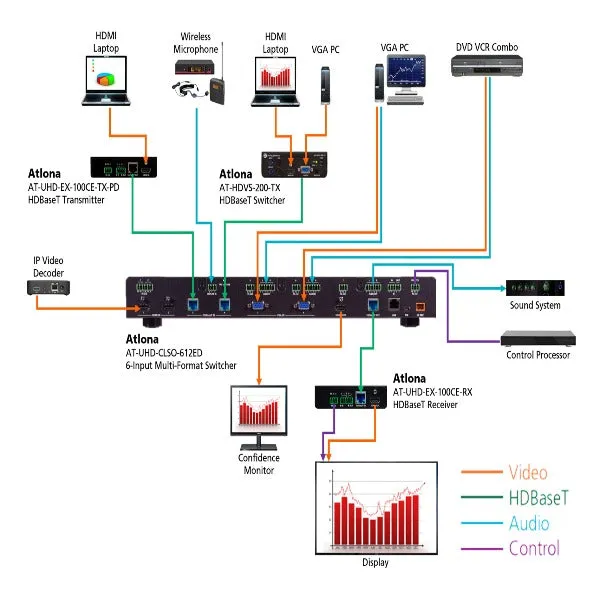

The Atlona AT-UHD-CLSO-612ED is a multi format switcher for digital and analog devices with an integrated 4K30 scaler. Inputs include 2 HDMI, 2 HDBaseT, and 2 VGA. An HDBaseT output with a mirrored HDMI output will feed your digital displays. The HDBaseT output can send your signal up to 328' away as well as power to your HDBaseT receiver. Use as an auto switcher to automatically detect the last plugged in input.

Specifications

Video Resolution	4096 x 2160 @ 24/25/30 Hz 3840 x 2160 @ 24/25/30 (UHD) 2048 x 1080p 1080p @ 23.98/24/25/29.97/30/50/59.94/60 Hz 1080i @ 50/59.94/60 Hz 720p @ 50/59.94/60 Hz 576p, 576i 480p, 480i
VESA	2560 x 2048 / 1600 2048 x 1536 1920 x 1200 1680 x 1050 1600 x 1200 / 900 1440 x 900 1400 x 1050 1366 x 768 1360 x 768 1280 x 1024 / 800 1280 x 768 1152 x 768 1024 x 768 800 x 600 640 x 480
Color Space	YUV, RGB
Chroma Subsampling	4:4:4, 4:2:2
Color Depth	8-bit, 10-bit, 12-bit
Analog Audio Input	PCM 2-Ch (De-embedded)
HDMI	PCM 2-Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Sample Rate	32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Bit Rate	Up to 24-bit
Distance	Cat5e/6 @ 4K: Up to 230' (70 m) Cat6a/7 @ 4K: Up to 328' (100 m) Cat5e/6 @ 1080p: Up to 328' (100 m) HDMI In/Out @ 4K: Up to 15' (5 m) HDMI In/Out @ 1080p: Up to 30' (10 m)
Signal	Bandwidth: 10.2 Gbps CEC Compliant HDCP Switchable - Compliant/Non-Compliant - 1.4
Certification	Unit: CE, FCC Power Supply: CE, FCC, Level VI, RoHS, cULus, RCM, CCC
Temperature	Operating: 32 to 122°F (0 to 50°C) Storage: -4 to 140°F (-20 to 60°C) Humidity: 20 to 90%, Non-condensing
Power	Consumption: 43 W Idle Consumption: 4 W Supply: Input: 100 to 240 VAC ~ 50/60 Hz Output: 48 VDC / 3.125 A
Dimensions (H x W x D)	1.7 x 17.2 x 10.0" (44 x 438 x 254 mm)
Weight	7.1 lb (3.2 kg)
