Technical

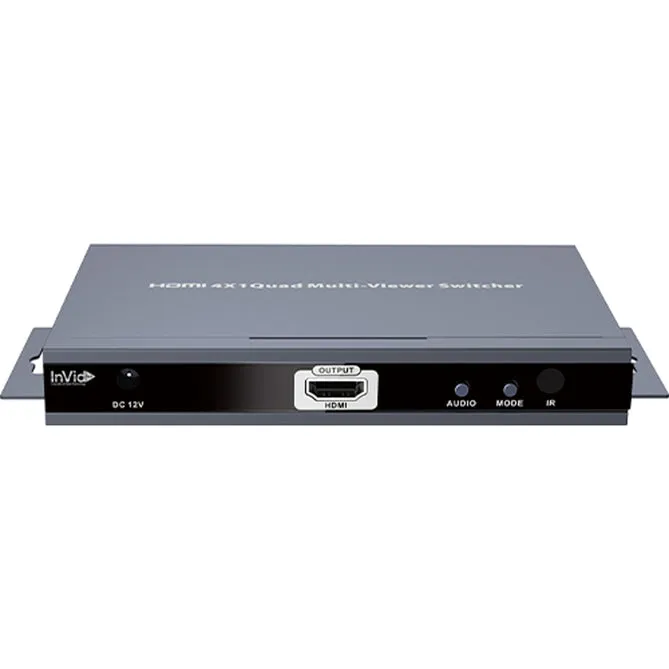

INVID-HDMI4X1

Input

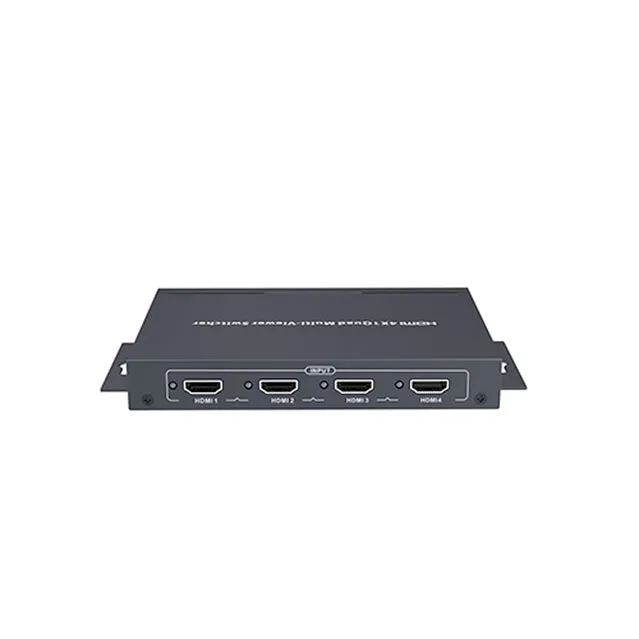

HDMI×4( Type A, 19 pin, female)

Output

HDMI×1( Type A, 19 pin, female)

Video support

480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz

Audio format

PCM

TMDS signal

0.7~1.5Vp-p(TMDS)

DDC signal

5Vp-p(TTL)

Support Modes

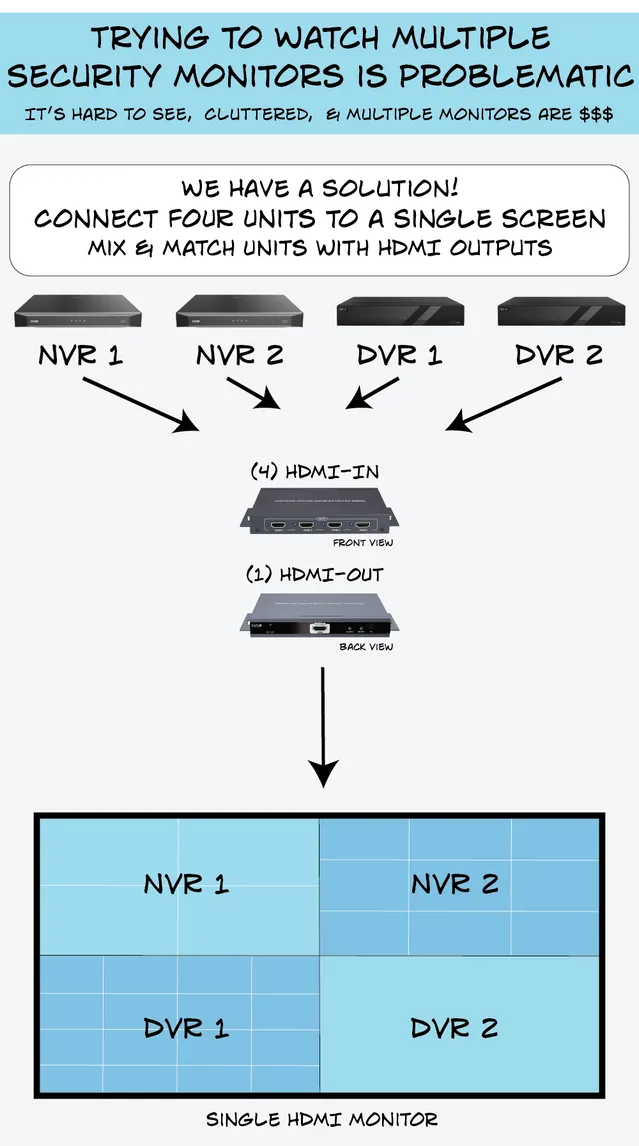

Full screen, Dual screen, Quad screen

MODE control

Button Control, Remote Control

IR Passback

n/a

HDCP

HDCP1.2

Mechanical

Housing

Metal enclosure

Dimensions (L×W×H mm)

178.5×104.74×21.2mm

Net weight

0.34kg

Fixedness

Wall-mounting case with screws

Power supply

12/2A

Power consumption

<10W

Operation temperaure

0~40°

Storage temperature

-20~60° C

Relative humidity

20-90% (no condensation)
