Product Details

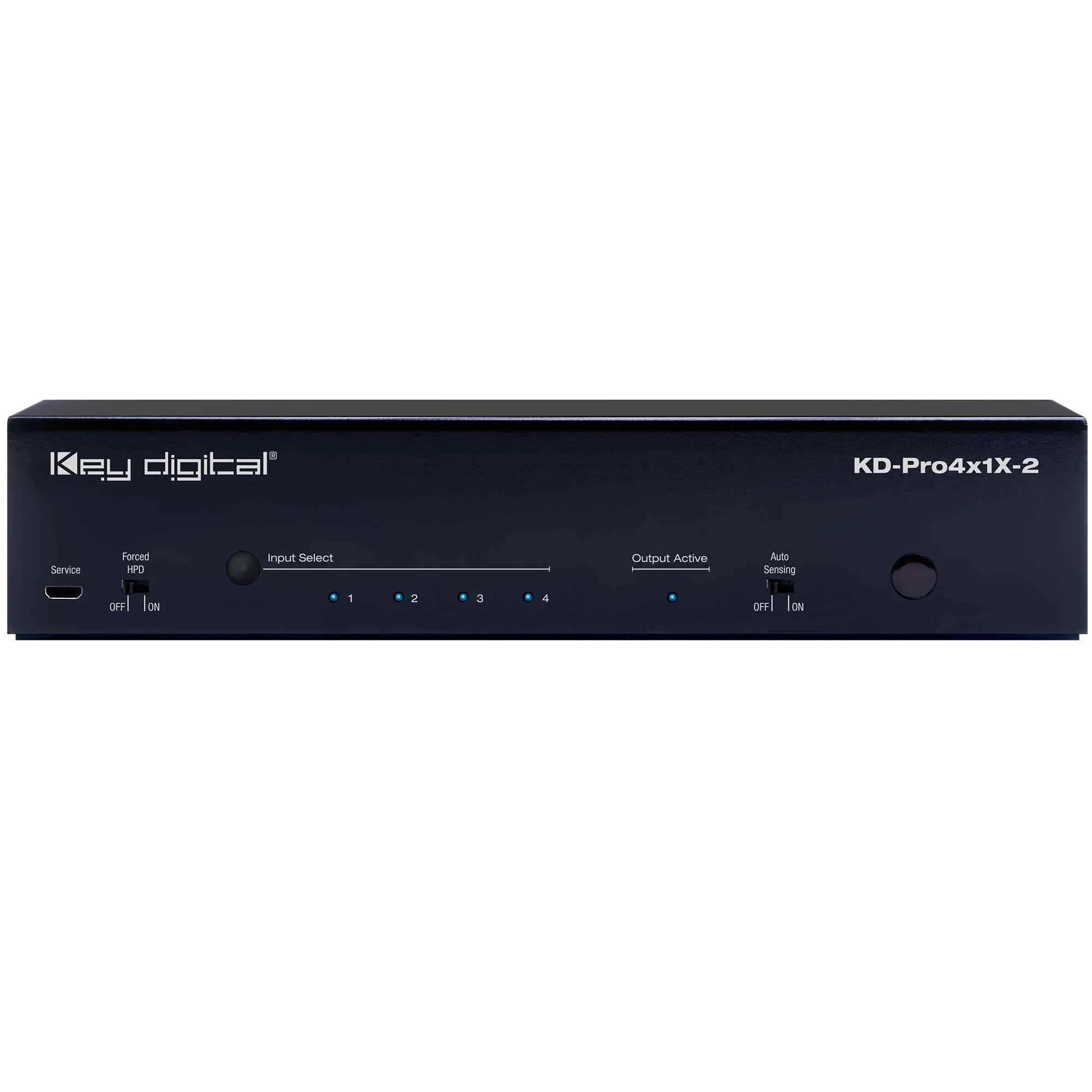

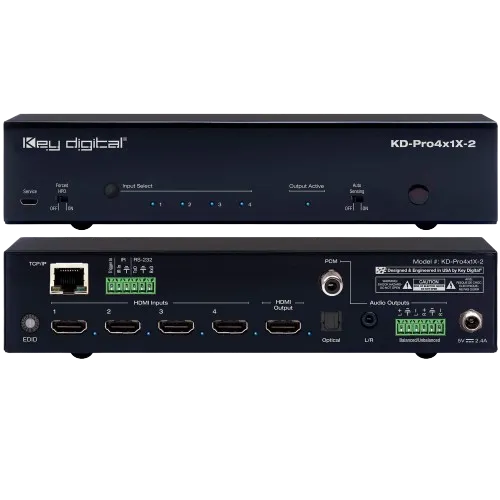

Key Digital® KD-Pro4x1X-2 is a 4K/18G HDMI switcher with analog and digital audio de-embedding, auto switching, web UI and iOS app-ready control. Designed for professional audio video installations in conference rooms, huddle spaces, classrooms, theater and gaming spaces, KD-Pro4x1X-2 enables multiple video sources to connect to a single video display while analog (3.5mm & balanced/unbalanced) and digital (optical & PCM) audio de-embed ports may feed audio of the selected source into and amplifier, DSP, or sound bar. KD-Pro4x1X-2 supports all SD, HD, VESA and Ultra HD/4K video standards with HDR header information included in a variety of 4K EDID handshakes. In addition to IR, RS-232, and TCP/IP control, KD-Pro4x1X-2 can also be controlled via trigger voltage and boasts a programming-free presentation system capability when integrated with KD-Amp220 and/or KD-CamUSB and controlled via Web UI or free Key Digital iOS app.

Features

  • HDMI Switching: 4 HDMI sources to 1 HDMI output/display
  • Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
  • Audio De-embedding®: Audio of the selected HDMI input is de-embedded at the analog (3.5mm stereo & L/R balanced/unbalanced) and digital (optical & PCM) connectors
  • Key Digital® App Ready: Scan & detect population for pre-built GUI and TCP/IP control via Key Digital® App
  • Auto-Sensing: Automatic selection of newly detected source and switching from newly disconnected source via hot plug detection voltage when enabled
  • Surround Audio Support: DTS-HD Master Audio™, DTS:X®, Dolby® TrueHD, Dolby Atmos®
  • Programming-Free Presentation System: Add KD-Amp220 and/or KD-CamUSB as desired and setup in KDMS Pro for a complete user interface in the web UI and KD iOS App including AV switching, volume control with microphone mix, and PTZ web cam control for an all-in-one user-friendly system.

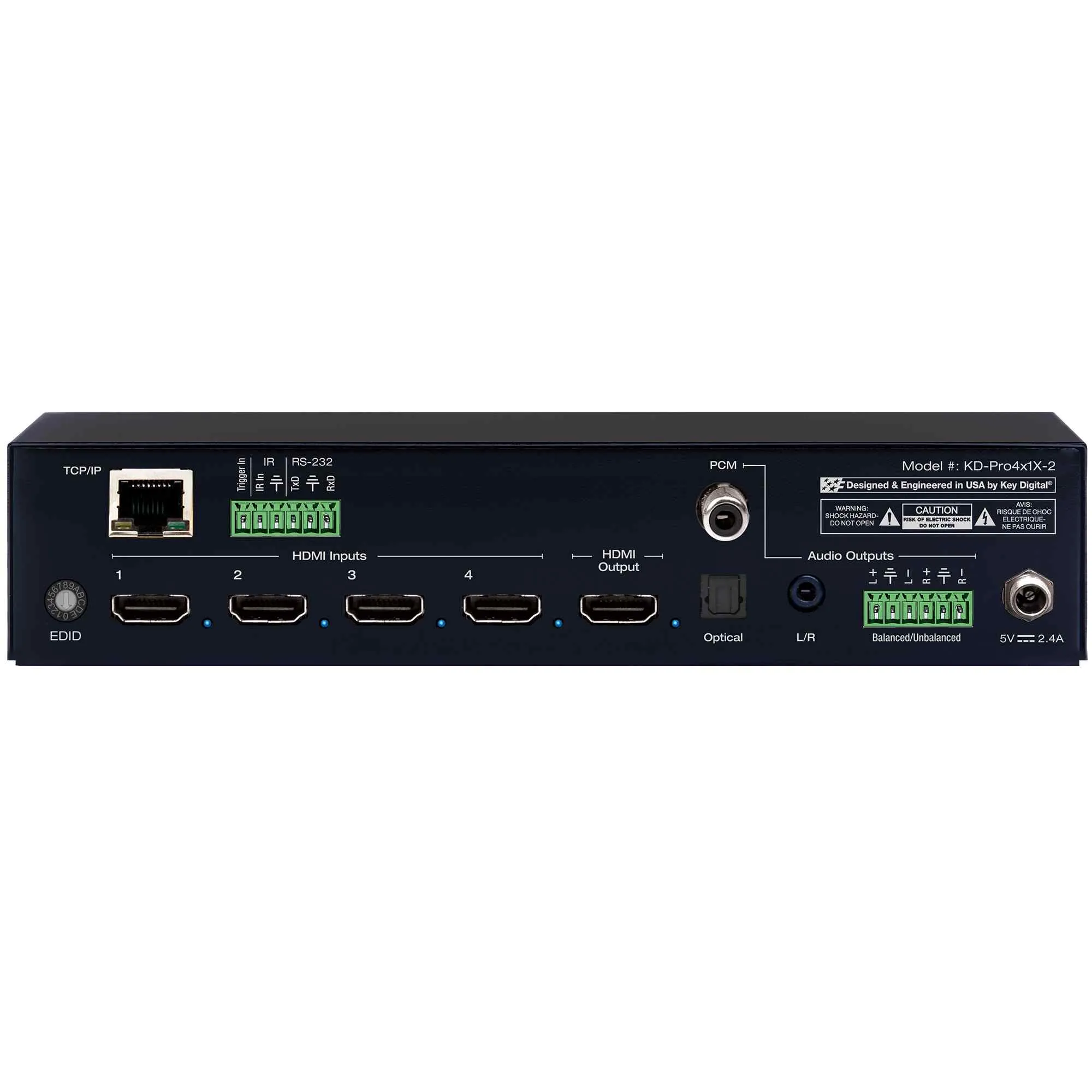

  • Control: Front panel button, serial IR, optical IR, RS-232, trigger in, and TCP/IP controllable with web UI and KD-App ready

Specifications

  • HDMI Input (Each): HDMI Connector, Type A, 19 Pin Female
  • HDMI Output: HDMI Connector, Type A, 19 Pin Female
  • HDMI Bandwidth: TMDS bandwidth 18Gbps
  • DDC Signal (Data): Input DDC Signal - 5 Volts p-p (TTL)
  • HDMI Video/Audio Signal: Input Video Signal - 1.2 Volts p-p
  • 3.5mm Stereo Audio Output: Line level audio on TRS connector. Drives 1 VRMS line audio output with a sampling rate of 192KHz
  • Balanced/unbalanced Audio Output: Line level audio on 6-pin terminal block. Drives 2VRMS line audio output with a sampling rate of 192KHz
  • Digital PCM Audio Output: RCA female for digital audio following SPDIF format (IEC 60958). Supports sampling rate up to 192KHz
  • Digital Optical Audio Output: TOSlink optical female for digital audio following SPDIF format (IEC 60958). Supports sampling rate up to 96KHz
  • PCM Max Output Level: 1Vpp on 75Ω, DC coupling
  • Audio Bandwidth: 20Hz to 20kHz @ 0dBu
  • TND Noise: 0.33% @0dBu @ 1kHz
  • Wired IR: modulated IR signal input, 0-5V TTL or -10 to 10V
  • Power Supply: 5V/1A, 5W, 100-240VAC, 50-60Hz, Interchangeable head, wall type, screw-in connector

General

  • Regulation: CE, RoHS, WEEE, EAC
  • Enclosure: Black Meta
  • Product Dimensions: 8.25” x 4.0” x 1.7” (210.82 x 101.9 x 43.96mm)
  • Packaging Dimensions: 10.75” x 8.9” x 2.2” (275 x 225 x 55mm)
  • Product Weight: 0.9 lb
  • Shipping Weight: 2 lb
