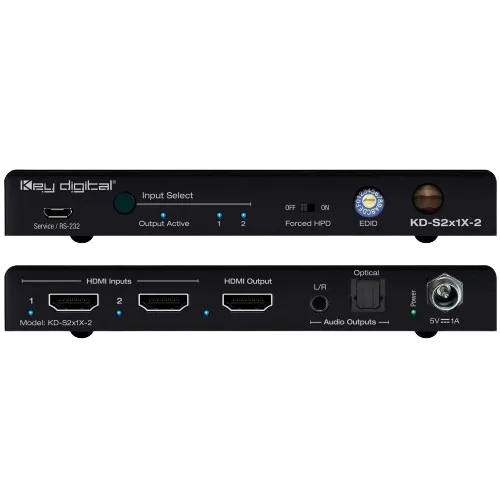

Key Digital® KD-S2x1X-2 is a 4K/18G HDMI switcher engineered to offer the best in quality, performance, and reliability, while providing a cost-effective HDMI switching solution. Designed for professional audio video installations in presentation, theater, and gaming spaces, KD-S2x1X-2 enables multiple video sources to connect to a single video display while L/R analog and Optical audio de-embed ports may be used to feed audio of the selected source into amplifiers, DSPs, or sound bars. Enable auto-switching to automatically select newly connected/powered sources or sequentially advance from the currently selected source when it is disconnected/powered off. KD-S2x1X-2 supports all SD, HD, VESA and Ultra HD/4K video standards with HDR header information included in a variety of 4K EDID handshakes. The switchers feature push button and optical IR switching, statusmonitoring LEDs, and support of HDR10, HDCP 2.2 and 4K.
Features
- HDMI Switching: 2 HDMI sources to 1 HDMI output/display
- Ultra HD/4K Support: 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps)
- Resolution Support: Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) up to 4096x2160p

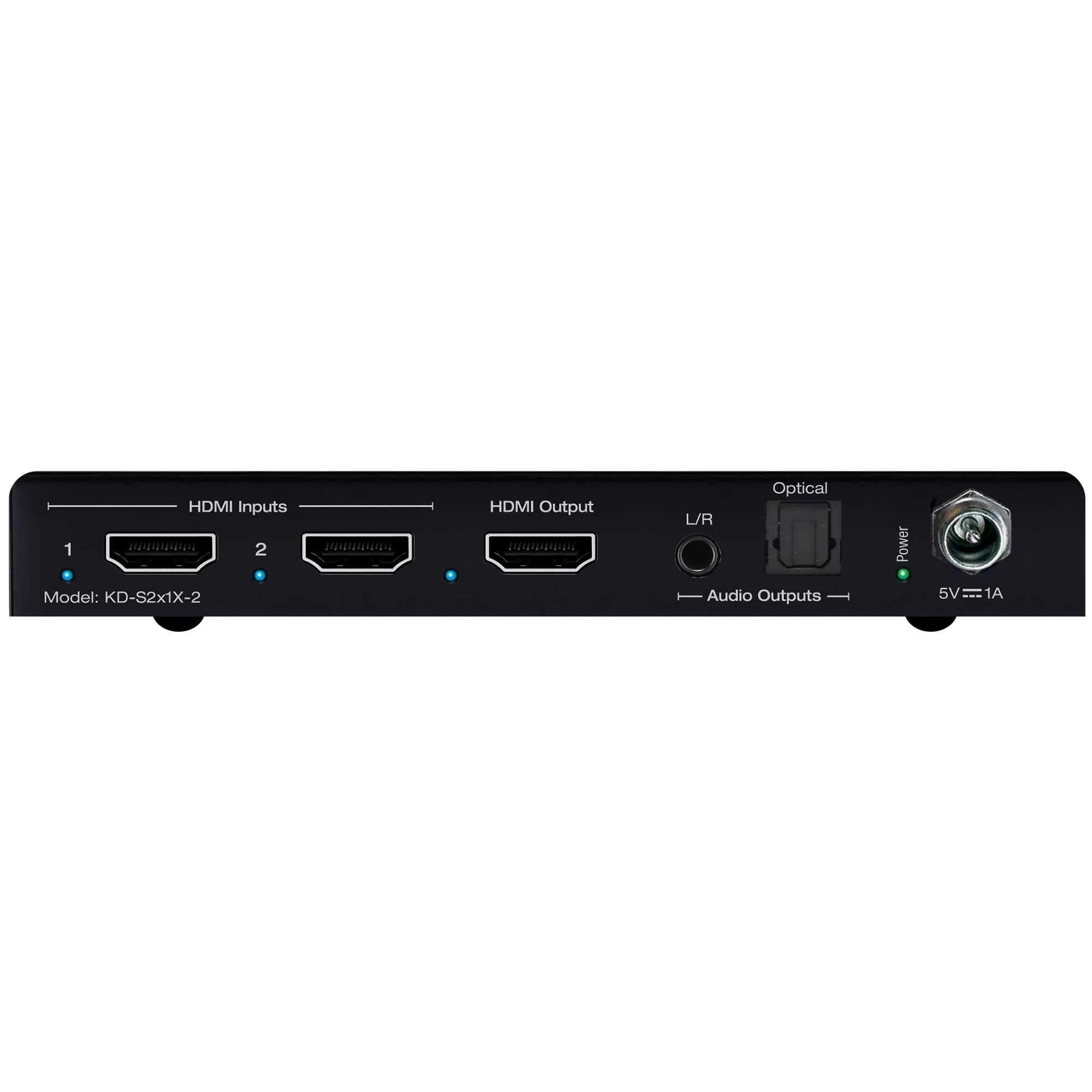

- Audio De-embedding: Audio of the selected HDMI input is output at the digital Optical and analog 3.5mm stereo connectors
- Auto-Switching: Automatic selection of newly detected source and switching from newly disconnected source via hot plug detection voltage when enabled
- Surround Audio Support: Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Master Audio™, and Dolby® Atmos

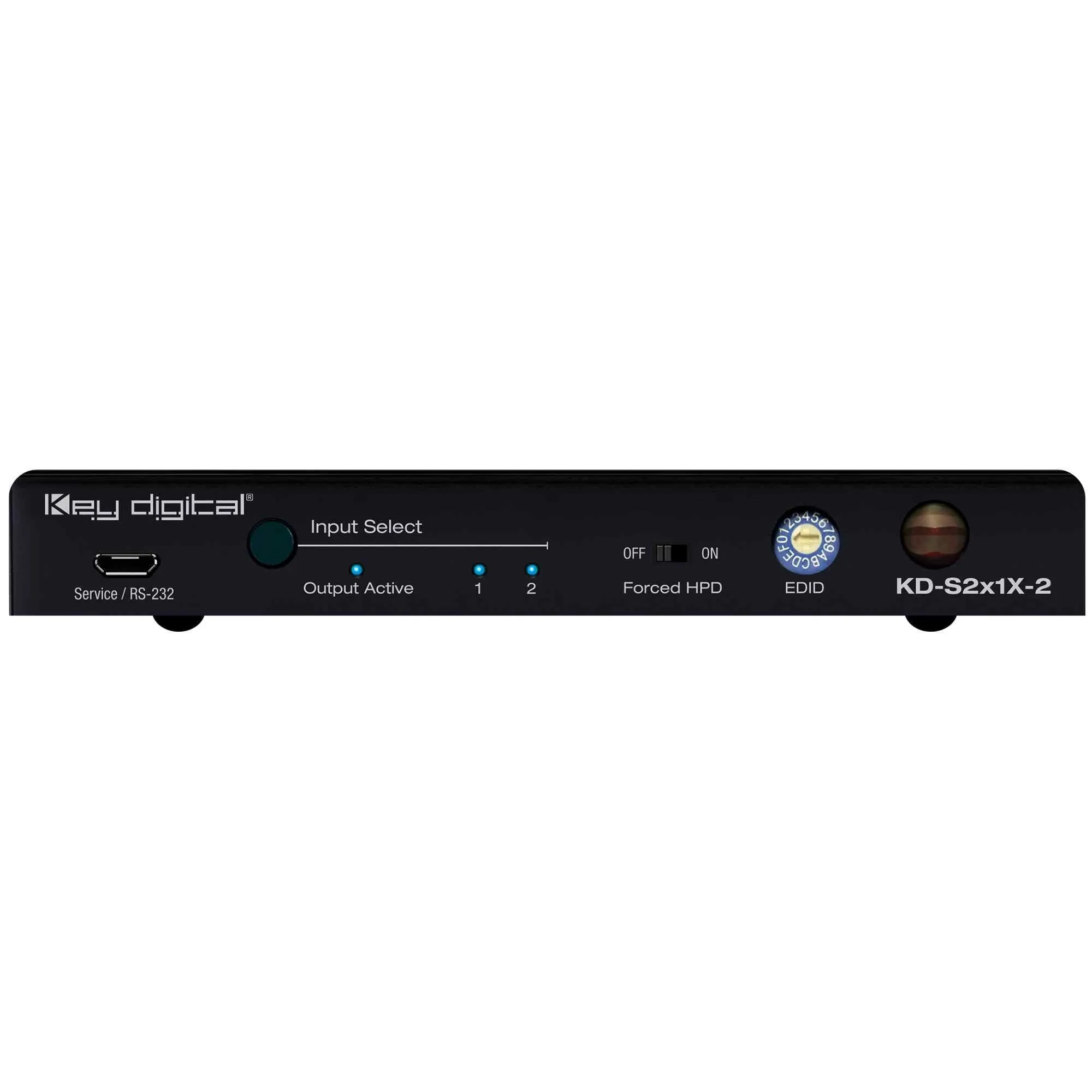

- Control: Front panel button, optical IR, RS-232 via Micro USB Port and included adapter cable
Specifications
- Input (Each): HDMI Connector, Type A, 19 Pin Female
- Output: HDMI Connector, Type A, 19 Pin Female
- Bandwidth: TMDS bandwidth 18 Gbps
- DDC Signal (Data): Input DDC Signal - 5 Volts p-p (TTL)
- HDMI Video/Audio Signal: Input Video Signal - 1.2 Volts p-p
- Power Supply: SKO1T-0500100Z, 5V/1A, 100-240VAC, 50-60Hz, Interchangeable head, screw-in connector
General
- Regulation: CE, RoHS, WEEE
- Enclosure: Black Metal
- Product Dimensions: 5.8 x 3.5 x0.8" (147 x 90 x 20mm)
- Packaging Dimensions: 8.3 x 5.6 x 3.1" (210 x 144 x 80mm)
- Product Weight: 0.8 lb
- Shipping Weight: 1.2 lb
