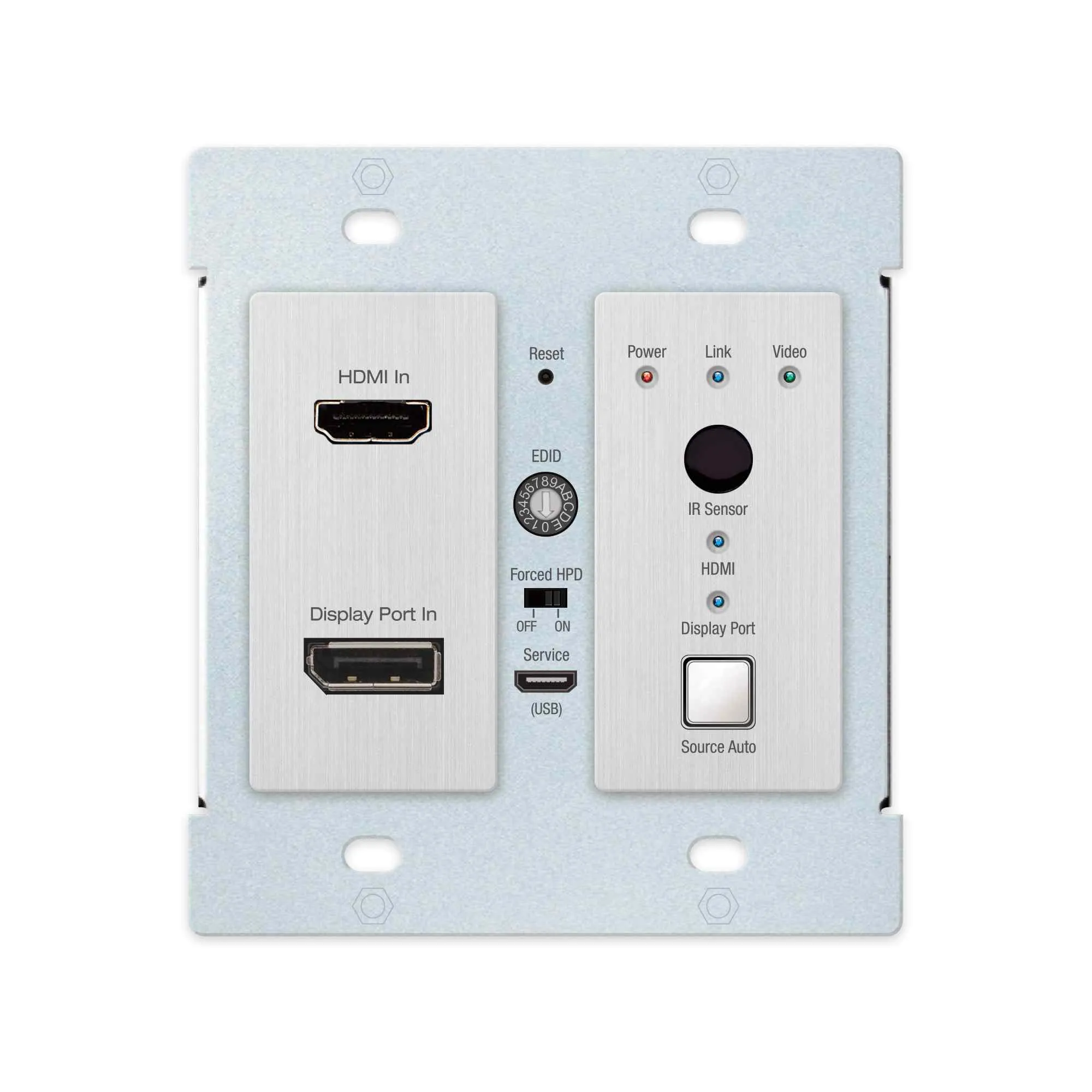

Key Digital® KD-2x1WDTx is an HDBaseT wall-plate transmitters presentation switcher with one HDMI and one Display Port input, ideal for professional video installations in conference rooms, huddle spaces, class rooms, and more. KD-X2x1WDTx's receivers (sold separately) feature audio de-embedding for ease of integration with audio systems. In addition to AV signals, KD-X2x1WDTx extends IR and RS-232 for controlling remotely located equipment. The wall-plate unit fits in a standard US dual-gang box and is powered by the Rx unit or Presentation Switcher for convenient installation.

Features

• Presentation Switching: 1 HDMI and 1 Display Port / VGA with Analog Audio source selected by push button
• Rx Options: Native integration with KD-X40MRx black box HDBaseT Rx and KD-PS42 Presentation Switcher. Other Rx options available
• Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
• Auto-Sensing: Automatic selection of newly detected source and switching from newly disconnected source when enabled
• Power Over HDBaseT: Wall-plate unit powered by Rx/Presentation Switch unit
• Installation: Tx unit designed for installation in standard US dual-gang box. Silver Decora plate included
• Signal Extension: 4K/UHD (18G) up to 40m / 131ft. 1080p up to 70m / 230ft
• Unit Control: via USB for initial installation steps
• Surround Audio Support: Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Master Audio™, and Dolby® Atmos

Specifications

• KD-X2x1WDTx Inputs: 1 HDMI, 1 Display Port, 1 IR Sensor, 1 Serial IR
• KD-X2x1WVTx Inputs: 1 HDMI, 1 DB15, 1 3.5mm Stereo Audio, 1 IR Sensor, 1 Serial IR
• Outputs: 1 CAT5e/6 UTP/STP, 1 Bi-Directional RS-232
• DDC Signal (Data): Input DDC Signal: 5 Volts p-p (TTL)
• HDMI Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
• KD-X2x1WVTx VGA Video Signal: Input Video Signal: 1.2 Volts p-p
• KD-X2x1WVTx Analog Audio Input: 2 VRMS line audio, 3.5mm Stereo Female
• KD-X2x1WDTX Display Port Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
• HDMI Connector: Type A, 19 Pin Female
• KD-X2x1WVTx VGA Connector: 15 Pin, Female
• KD-X2x1WDTx Display Port Connector: Full Size, 20 Pin Female

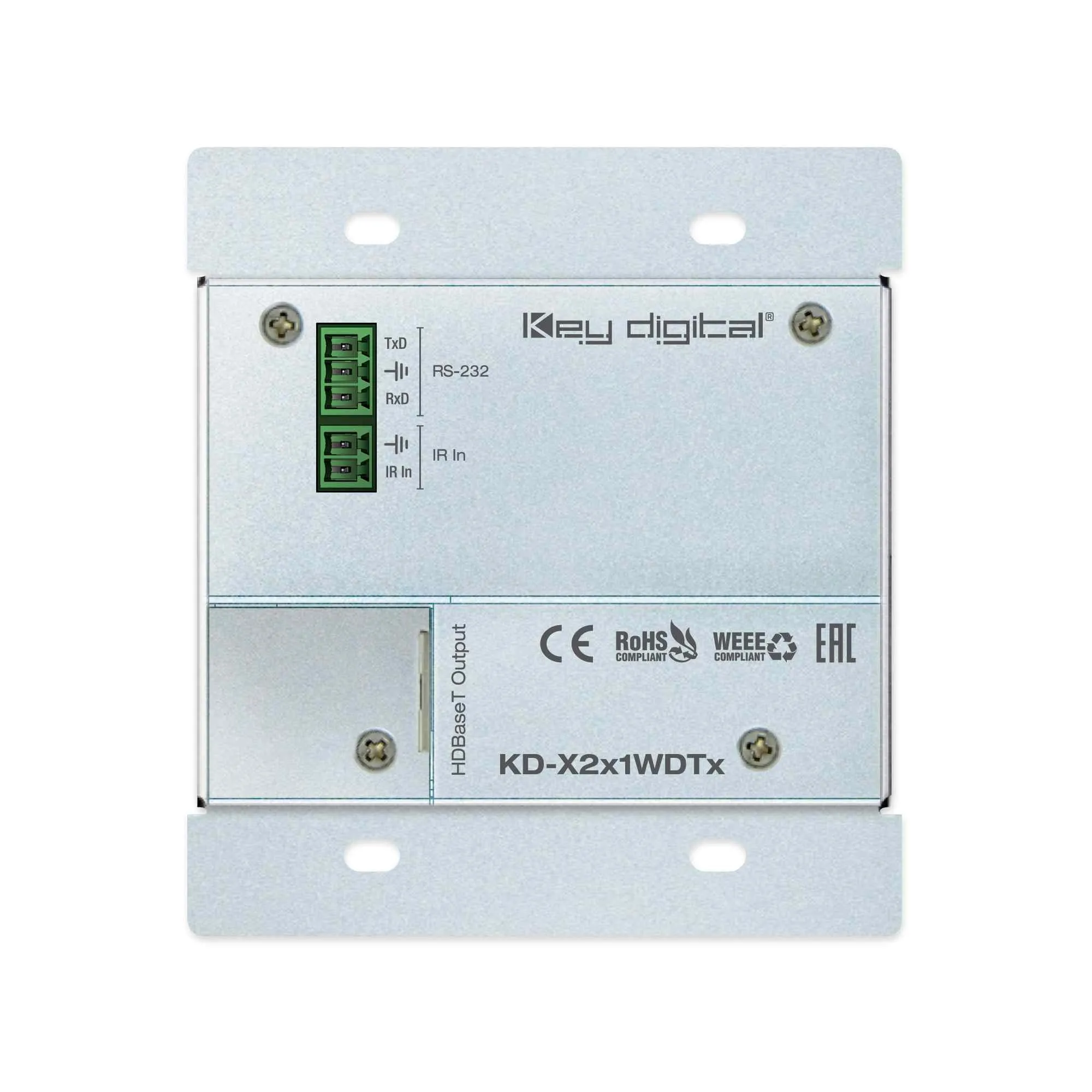

• RJ45 Connector: Shielded Link Connector, HDBaseT
• IR Connectors: 1 IR Sensor, 1 2-pin phoenix terminal
• RS-232 Connector: 3-pin phoenix terminal


General

• Regulation: CE, RoHS, WEEE, EAC
• Enclosure: Tx unit: Brushed aluminum face with black metal backing
• Dimensions: 3.21” x 2.06” x 0.787” (Wall-plate)
• Product Weight: 0.7 lbs
• Packaging: 10.6” x 5.9” x 2.1” (270x150x55mm)
• Packaging Weight: 1.3 lbs
