KD-XWPS is a single-gang wall-plate switcher transmitter receiver kit with one HDMI and one USB-C input.

It's ideal for professional AV systems installations in conference rooms, huddle spaces, classrooms, and more.

High-Resolution 4K/UHD Support

KD-XWPS supports 4K/UHD resolution with bandwidth up to 18Gbps and HDCP2.2 compliance.

It extends video resolutions up to 4096x2160 at 60Hz with 4:4:4 chroma sub-sampling. This is accomplished over a single CAT6/6A cable up to 164ft (50m).

IR Device Control

In addition to HDMI video and audio signals, the CAT6 to HDMI wall plate features an IR sensor on the faceplate to allow for remote control of equipment located elsewhere. It Collects line-of-sight infrared from remotes without an external connecting block.

System Integration Tools

KD-XWPS features EDID handshake control and hot plug detection for overcoming common systems integration obstacles.

Convenient Installation

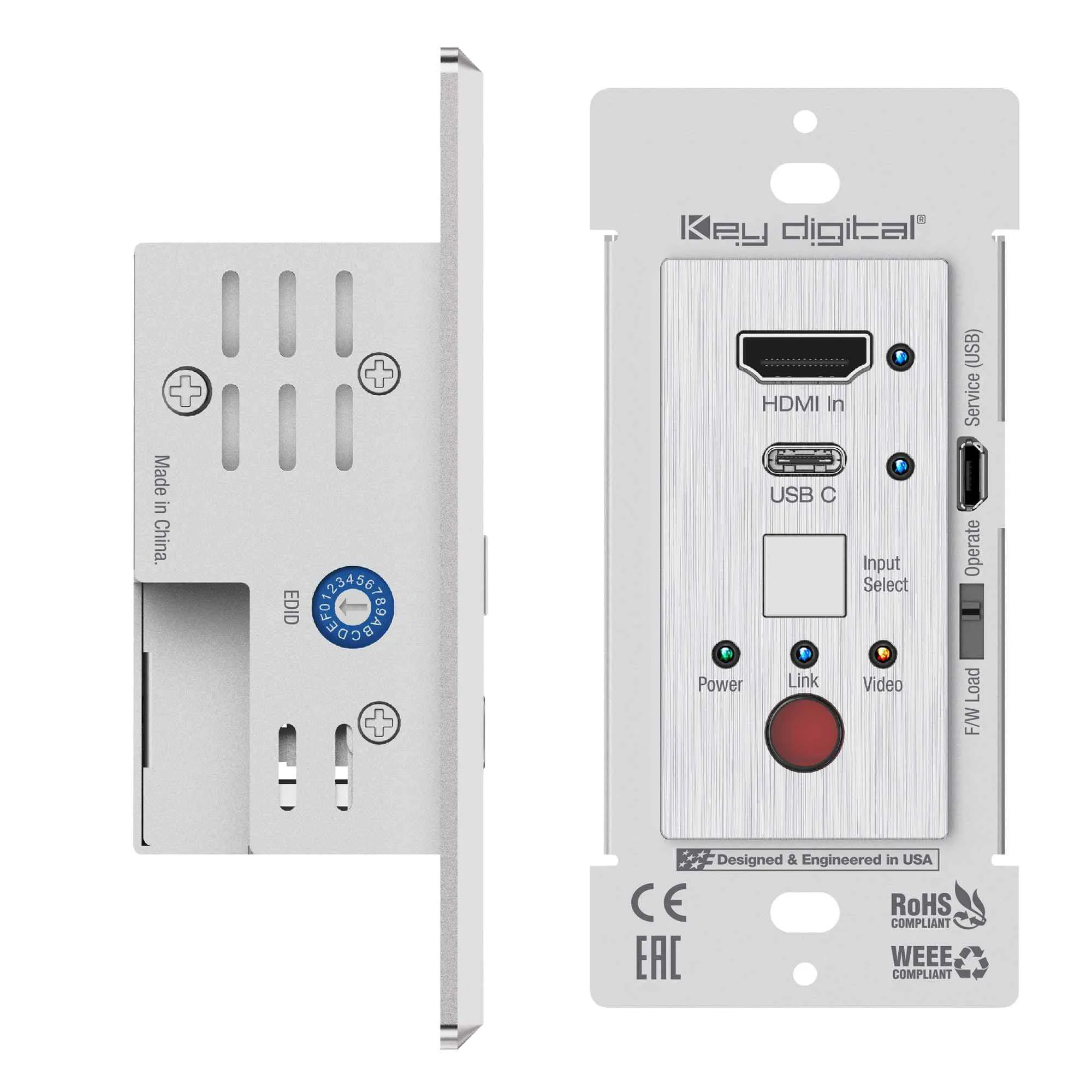

The CAT6 wall-plate unit fits in a standard US single-gang box. It is powered by the Rx unit for convenient installation.

Features

• Presentation Switching: 1 HDMI and 1 USB-C selected by push button or auto switching
• Auto-Switching: Automatic selection of newly detected source and switching from newly disconnected source when enabled

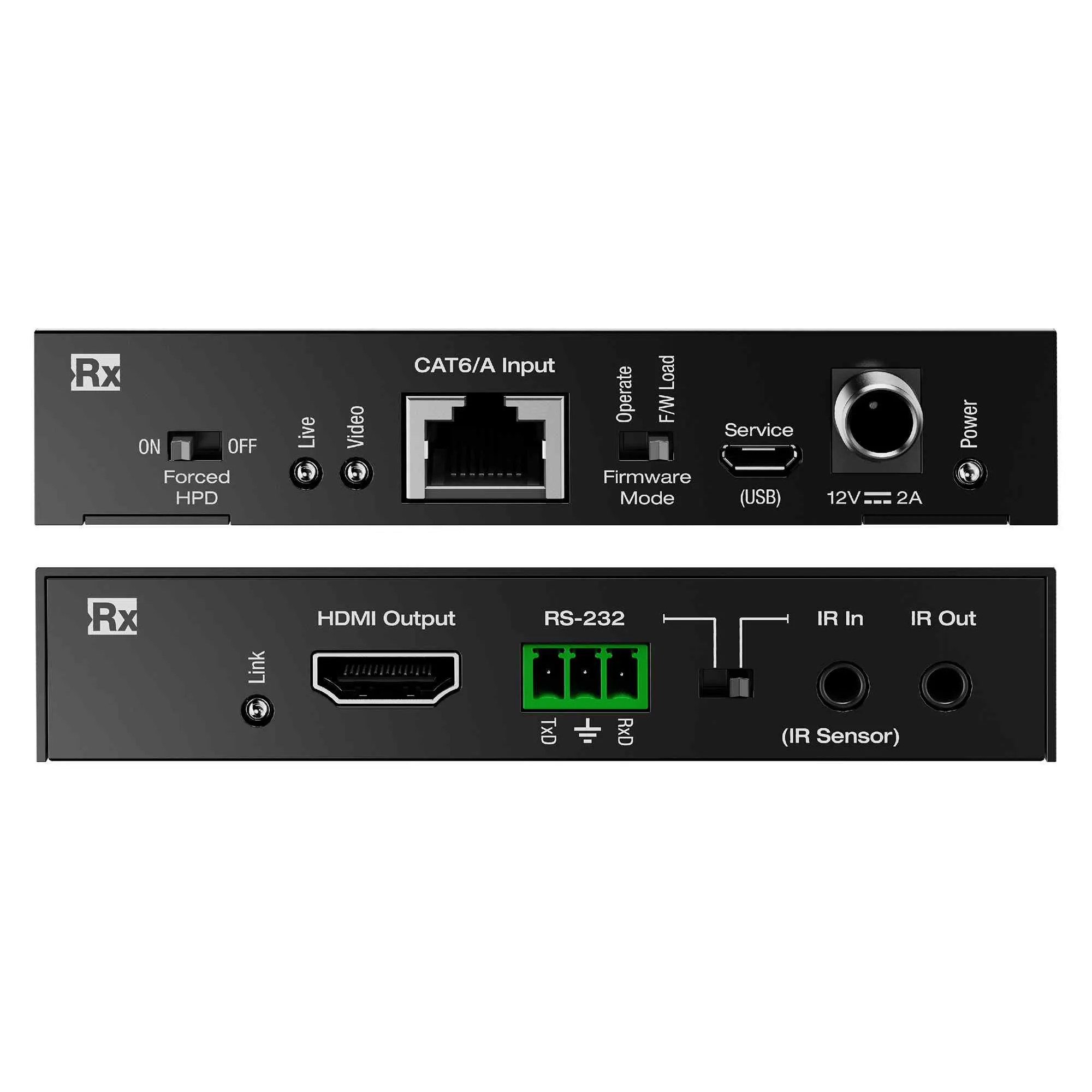

• Complete Kit: Includes Tx (model KD-EXWPSTx) and Rx (model KD-X444SPRx) units
• Ultra HD/4K: Supports up to 4096x2160 or 3840x2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
• Visually Lossless Compression: 18G enabling technology applied to all video formats exceeding 10.2Gbps to accommodate CAT6/6A transmission channel
• Power over CAT: Wall plate Tx unit powered by Rx
• Signal Extension: 4K/UHD (up to 18G) up to 164ft / 50m. 1080p and lower up to 230ft / 70m.
• IR Sensor: HDMI wall-plate 4K collects line-of-sight IR from remote(s) without external IR wiring
• Surround Audio Support: Dolby ®, DTS™ (formats up to 5.1 / 6.1)

Features

• AV Inputs: 1x HDMI, 1x USB C
• AV Outputs: 1x CAT6/6A RJ45
• DDC Signal (Data): Input DDC Signal: 5 Volts p-p (TTL)
• HDMI Video/Audio Signal: Input Video Signal: 1.2 Volts p-p
• USB-C Signal: Input Video Signal: 1.2 Volts p-p
• RJ45 Connectors: Shielded Link Connector, CAT6/6A
• RS-232 Connector: 3-pin phoenix terminal
• IR: 1x IR Sensor at Tx unit, 1x 3.5mm mono output at Rx unit

General

• Regulation: CE, RoHS, WEEE, EAC

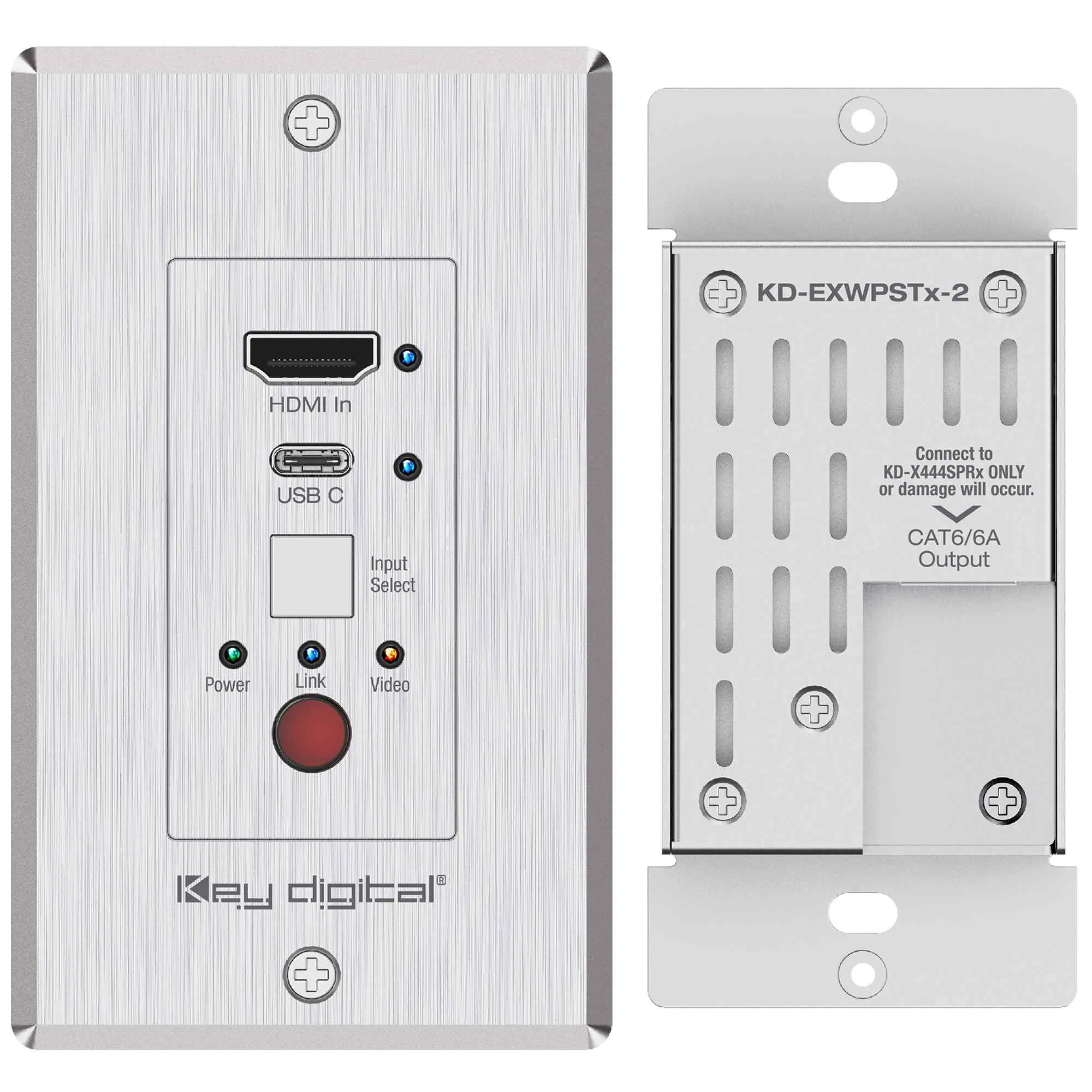

• Tx Wall plate: U.S. 1-gang wall plate in aluminum enclosure
• Decora plate: Brushed aluminum
• Rx Enclosure: Black Metal
• Product Dimensions (Tx): 1.92 x 4.13 x 1.42” (49 x 105 x 36.2 mm)
• Product Weight (Tx): 0.6 lbs (0.27 kg)
• Product Dimensions (Rx): 4.3” x 4.12” x 0.82” (109.2 x 104.6 x 20.8mm)
• Product Weight (Rx): 0.595 lbs (0.27 KG)
• Packaging Dimensions: 10.23 x 5.67 x 3.15” (260 x 144 x 80mm)
• BTU: 30.7 per hour
• Packaging Weight: 1.98lbs (0.9 kg)
