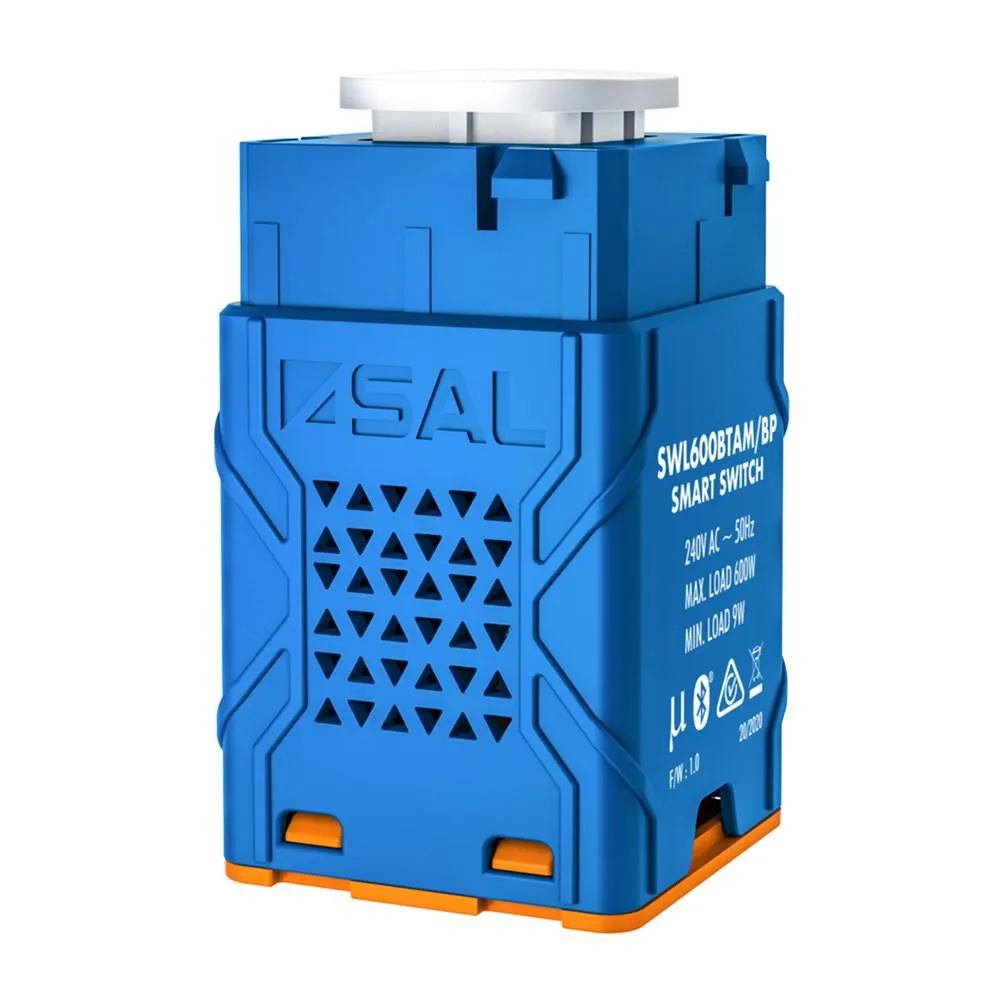

PIXIE MASTER DEVICE - SMART HOME - digital 600 watt push button switch, Generation 3, with Bell Press terminal leads

Application
Smart lighting controls with Bluetooth Mesh connectivity for residential and commercial spaces

Features:

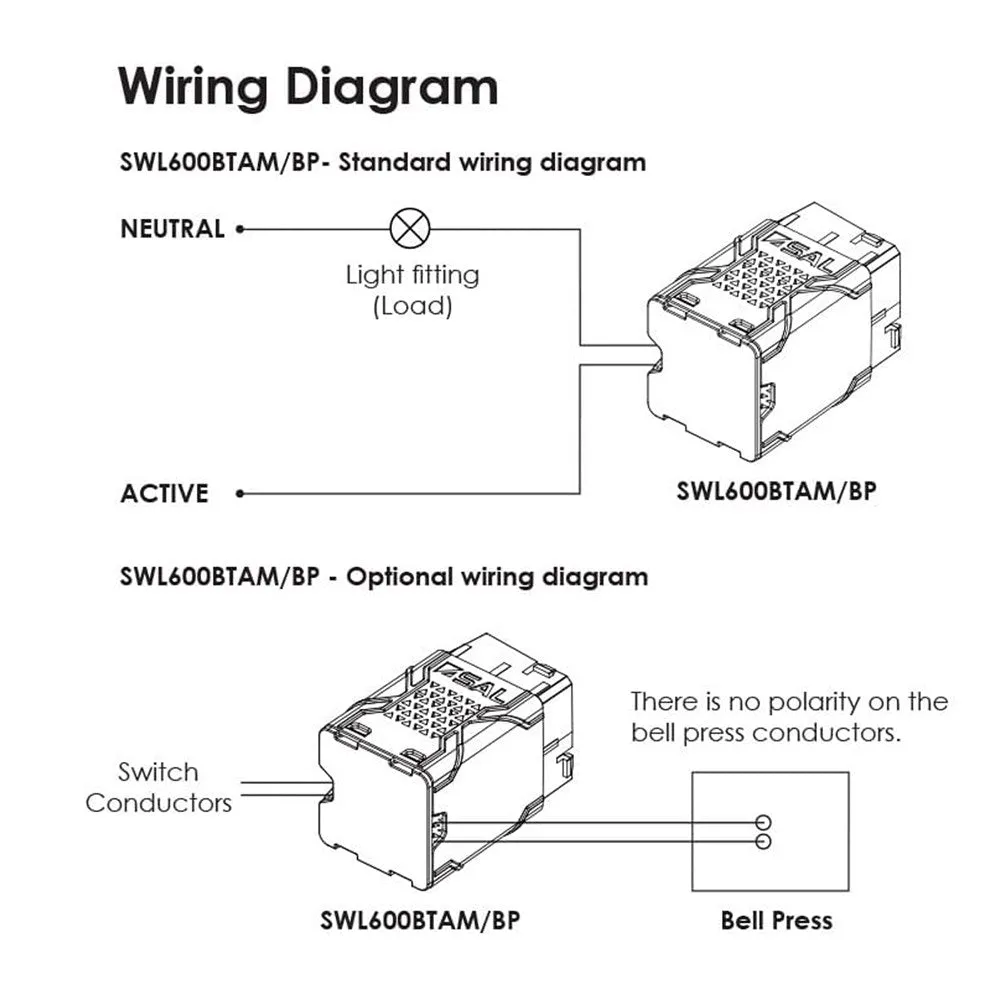

• SWL600BTAM/BP includes Bell Press termination leads for dry contact signal input.
• Easy two wire termination with fly lead termination, compliant to AS/NZS 60669.2.1 and designed with a typical wireless range of 15 metres, or further with the SAL signal booster.
• Digital push button control with three (3) complimentary key caps provided to suit most switch plates
• Operating the device with the SAL PIXIE app allows the user to set a scene, group devices, set a schedule and more!
• Fully compatible with PIXIE PLUS, so with the inclusion of the SAL Gateway and the internet, you can control your PIXIE devices from anywhere in the world, or with compatible voice control devices.
• Overheating, overload and full short circuit protection, maximum load 600 watt, minimum load *9 watt. For load type compatibility, including exhaust fans, please refer to installation instructions. SMART LED indicator, versatile design, fitting most branded switch plates, 1 - 6 gang configurations.

Specifications:

• Colour: White
• Input Voltage: 240v
• Power: 600w
• IP Rating: IP20
• Dimmable: No
• Warranty: 2 Year Residential, 1 Year Commercial

Dimensions:

• Length: 42mm
• Width: 24mm
• Height: 24mm

*9W minimum load is subject to product capability, this size load may require the inclusion of the LOAD capacitor included in the product carton
